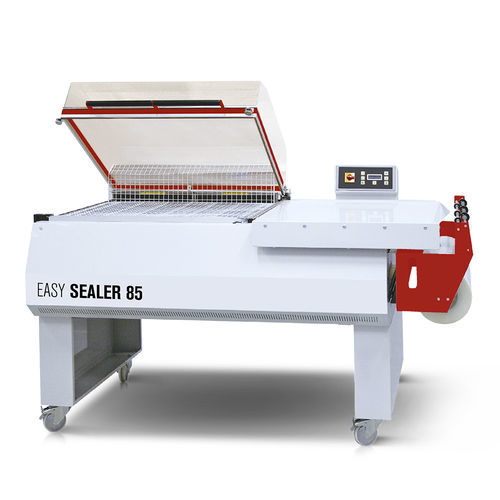

Semi-automatic shrink wrapping machine Easy Sealer 85

for heat packingpackaging machinewith sealing bar

Overview The bell thermo-packaging machine Easy Sealer 85 is designed for large-format products, combining a high-strength steel frame with latest-generation electronics and an intuitive front control interface. Enlarged support surface and precise control of welding and shrink parameters enable consistent packaging results and efficient operation.

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical support available for purchase
• Competitive value for industrial applications
• 12-month warranty on spare parts
• Fast delivery and quick commissioning
• Manufacturer present on the market for over 35 years

Use and characteristics
Method of use The operator places the product in the shrink film on the work surface and manually slides it into the sealing area under the bell. Lowering the bell starts the sealing and shrinking cycle automatically. At cycle end the bell lifts automatically, allowing removal of the packaged product and preparation for the next cycle.

Optional

• Dual coil support
• Waste recovery device
• Stainless steel packaging plate

LCD panel control features

• Machine status display
• Electronic counter showing number of packages produced
• Adjustment of welding temperature, shrink time, shrink-chamber temperature, retraction delay and alarms for delayed bell opening
• Store up to 10 different work programs
• Modular power section separate from the control panel with solid-state relay (SSR) for longer life and easy maintenance (replaceable module without loss of memory)

Product information Machine size: L 1895 x W 1055 x H 1190 mm
Net weight: 191 kg
Supply voltage: 380 V three-phase
Power frequency: 50 / 60 Hz
Installed power: 5.1 kW
Welding bar size: L 870 x W 620 mm
Maximum product height: 310 mm
Maximum production: up to 300 packages per hour
Maximum reel dimensions: 800 mm width – ø 300 mm
Usable films: PVC, polyolefin
Film thickness: up to 30 µm

Technical specifications

• Frame: high-strength steel structure
• Control: front intuitive control interface, latest-generation electronics
• Programmability: store up to 10 work programs
• Max product height capacity: 310 mm
• Max production rate: up to 300 packages per hour
• Installed power: 5.1 kW
• Supply: 380 V, three-phase, 50/60 Hz
• Welding bar dimensions: 870 x 620 mm (L x W)
• Machine dimensions (L x W x H): 1895 x 1055 x 1190 mm
• Net weight: 191 kg
• Reel capacity: up to 800 mm width, max ø 300 mm
• Usable films: PVC and polyolefin up to 30 µm
• Optional accessories: dual coil support, waste recovery device, stainless steel packaging plate
