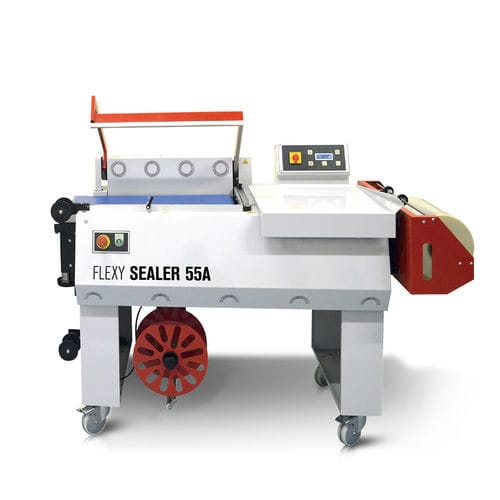

Semi-automatic L-sealer Flexy Sealer 55A

motorizedcontinuous-motionautomated

Product overview
The Flexy Sealer 55 A is a semi-automatic L-sealer designed for mid-volume packaging lines. It combines an electronically controlled welding system with a motorized conveyor and automatic discharge to support continuous operation and repeatable sealing quality up to 1500 pph.

5 key reasons to choose this product

• Technical purchase support
• Low initial investment and competitive operating cost
• 12-month warranty on spare parts
• Fast lead time and simple maintenance
• Manufacturer with over 35 years on the market

Key features (summary)
Electronic welding control for constant precision, PTFE-coated sealing blade, closed-circuit liquid cooling of sealing bars and a movable product holder independent from the film reel support for improved film alignment.

Features of the packaging machine
The machine integrates advanced safety devices, programmable cycles and the Flextron control system with an alphanumeric LCD and microprocessor board. A motorized belt provides automatic package release to reduce manual handling and speed up throughput.

Method of use
The operator places the product inside the film on the work surface, pushes it into the sealing area and starts the cycle. The motorized sealing bar descends and seals the film; the conveyor then moves the package to the shrink chamber or to automatic unloading.

Optional

• Dual coil support
• Stainless steel packaging plate
• Start cycle pedal kit
• AISI 304 stainless steel structure

Detailed features

• Continuous-cycle welding system
• Double holding electromagnet
• Package diverter
• Standard waste recovery
• PTFE-treated welding blade
• Closed-circuit liquid cooling of welding bars with coolant level indicator
• Work surfaces adjustable from outside via handwheel
• Mobile product holder plate independent from film reel support
• Emergency stop button
• Automatic package release by motorized belt
• Flextron control with alphanumeric LCD, 16-bit microprocessor board and solid-state relay
• Modular power section separate from control panel for easy replacement without losing memory data

Operations control

• Machine status display
• Electronic counter for produced packages
• Instant production readout
• Adjustable welding temperature
• Adjustable package exit speed
• Automatic motorized bell closing/reopening managed by inverter
• Welding arm opening delay
• Welding bar contrast safety device
• Storage for up to 10 work cycles for quick changeover
• Reduced energy consumption

Technical specifications

• Machine size: L 2010 x W 790 x H 1050 mm
• Net weight: 145 kg
• Supply voltage: 220 V 1Ph
• Frequency: 50 / 60 Hz
• Installed power: 2.5 kW
• Welding bar size: 560 x 430 mm
• Maximum product height: 230 mm
• Max product size: L 520 x W 390 x H 230 mm
• Maximum production: up to 1500 pph
• Maximum reel dimensions: 600 mm × ø 300 mm
• Usable films: PVC, polyolefins, polyethylene
• Film thickness: up to 50 μm
