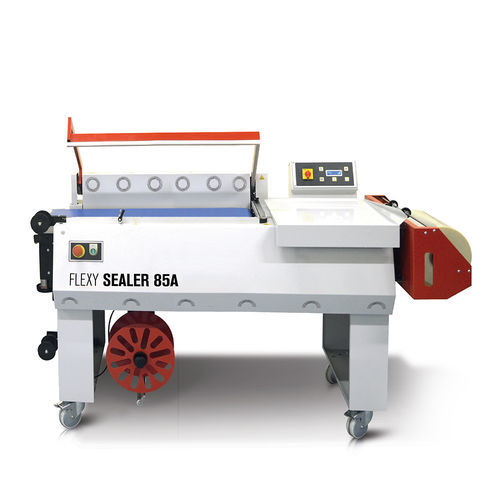

Linear sealing machine Flexy Sealer 85 A

semi-automaticmanualautomatic

Overview
The Flexy Sealer 85 A is a semi-automatic angular sealing machine designed for industrial packaging lines. It performs continuous cycle sealing with a welding bar of 870×620 mm, supports product heights up to 300 mm and delivers production rates up to 900 pph. The machine can operate in manual or automatic mode and integrates with S 55 and S 85 shrink tunnels for a continuous workflow.

Method of use
The operator places the product inside the film on the work surface, slides it into the sealing area and starts the cycle. The motorised sealing bar lowers and seals; after sealing the motorised conveyor moves the package into the shrinking chamber and unloads it.

Optional

• Dual coil support
• Stainless-steel packaging plate
• Start-cycle pedal kit

Advanced technical solutions

• PTFE-treated welding blade for extended life and consistent weld quality
• Closed-loop liquid cooling of welding bars to ensure operational continuity
• Waste recovery system to reduce material loss
• Mobile product holder plate independent of the reel support for precise film handling

Features

• Electronically controlled welding system for precision and uniformity
• Continuous cycle welding system
• Double holding electromagnet
• Package diverter
• Standard waste recovery
• Coolant level control display
• Work surfaces adjustable from the outside via handwheel
• Emergency stop
• Automatic package release via motorised belt
• Flextron® control system with alphanumeric LCD and microprocessor board
• Modular power section separate from the control panel (replaceable modules without losing memory data)

Operations control

• Machine status display
• Electronic counter for produced packages
• Instant production indicator
• Welding temperature adjustment
• Package exit speed adjustment
• Automatic closing/reopening of motorised bell managed by inverter
• Welding arm opening delay
• Welding bar contrast safety device
• Storage for up to 10 different work cycles
• Reduced energy consumption

5 Great Reasons (summary)

• Technical purchasing support
• Good value for investment
• 12-month spare parts warranty
• Fast setup and storage
• Company present on the market for over 35 years

Technical specifications

• Machine size: L 3050 x W 1055 x H 1125 mm
• Net weight: 267 kg
• Supply voltage: 220 V single-phase
• Frequency: 50 / 60 Hz
• Installed power: 3.1 kW
• Welding bar size: L 870 x W 620 mm
• Maximum product height: 300 mm
• Maximum production: up to 900 pph
• Maximum reel dimensions: width 800 mm – ø 300 mm
• Usable films: PVC, polyolefins, polyethylene
• Film thickness: up to 50 µm
