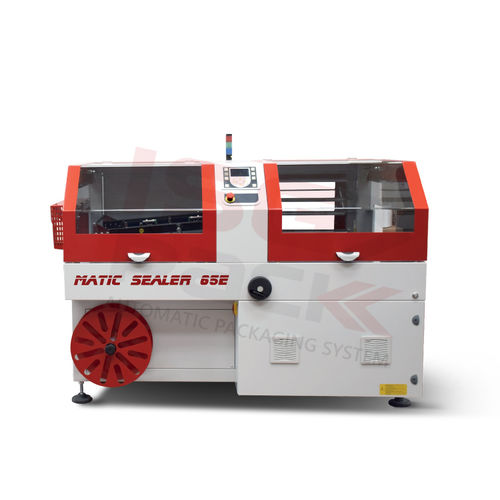

Electric L-sealer Matic Sealer 65 E

motorizedcontinuous-motionfully-automatic

Product overview
The Matic Sealer 65 E is a full-electric angular (L) sealer designed for single-fold polyethylene and polyolefin films. It supports production rates up to 1800 packs/hour and can be supplied with or without a heat-shrink tunnel. The model is suitable for inline, high-frequency packaging lines where stable cycle control and repeatability are required.

Key highlights

• Throughput: up to 1800 packs/hour (pph)
• Compatible films: single-fold polyethylene and polyolefins (up to 30 my)
• Available with or without heat-shrink tunnel; compatible with S55 and S85-type tunnels

5 reasons to choose this product

• Technical support available for purchase and commissioning
• Competitive purchase cost and low operating consumption
• 12-month warranty on spare parts
• Short lead time and fast spare-part availability
• Manufacturer with over 35 years of market presence

Main features and equipment
Equipped with a waste recovery system and continuous-cycle welding. FLXMOD® control system with 4.3" graphic LCD panel and PLC. Digital and analog IN/OUT control modules. Double welding temperature adjustment on long and short sealing bars. Memory for up to 20 work cycles.

Method of use
The motorized feed belt conveys products inside the single-fold film. Photocells detect the product and start the automatic cycle. Feeding, film unwinding, sealing and unloading of the wrapped product are fully automatic, enabling integration into automated production lines.

Optional

• Device for centering printed film
• Welding bar for polyethylene from 15 to 60 my
• Cold film perforating device
• 500 mm wider infeed belt
• Protected outfeed roller conveyor with idle rollers, pitch 46 mm, length 1000 mm

Features

• Full-electric angular packaging machine
• Motorized welding bar controlled by inverter and encoder
• PTFE-treated welding blade
• Emergency stop button
• Safety devices
• Continuous-cycle welding system
• FLXMOD® control with 4.3" graphic LCD and PLC
• Inverter drives for all motors
• Digital and analog I/O modules
• Reduced energy consumption
• CE conformity

Operations control

• Store up to 20 different work cycles
• Automatic bar height control
• Double adjustment of welding temperature (length and width of welding blade)
• Welding time adjustment
• Packaging of single items or product groups
• Electronically adjustable conveyor speed
• View process statistics

Product information

• Machine size: L 2180 x W 1545 x H 1505/1665 mm
• Net weight: 580 kg
• Supply voltage: 380 V three-phase
• Power frequency: 50 / 60 Hz
• Installed power: 3.3 kW
• Welding bar size: 640 x 510 mm
• Maximum product height: 120 mm
• Maximum production: up to 1800 pph
• Maximum reel dimensions: 600 mm width – Ø 350 mm
• Usable films: PVC, polyolefins and polyethylene
• Film thickness: up to 30 my
