Semi-automatic shrink wrapping machine Eco Sealer 55

for filmfor packagingwith sealing bar

Product overview

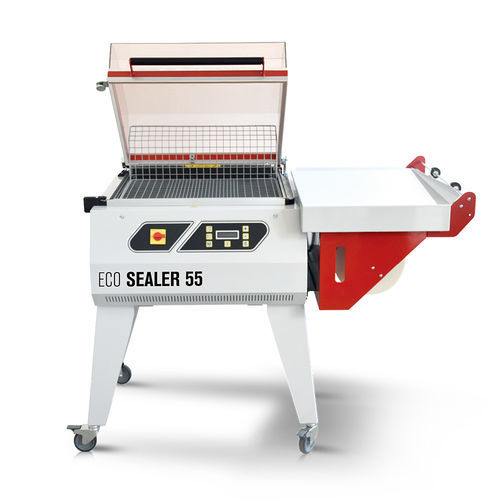

Eco Sealer 55 shrink wrapping machine is a compact, low-energy heat-shrink machine designed for small to medium production environments such as artisan workshops, commercial activities and companies with limited production volumes. Its compact design and advanced shrink technology provide reliable packaging performance with reduced energy consumption. An intuitive LCD panel displays and controls welding time, shrink temperature and work cycles to enable precise, repeatable packaging settings.

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical support for purchasing
• Excellent value for money
• 12-month warranty on spare parts
• Quick delivery times
• Manufacturer present on the market for over 35 years

Method of use
The operator places the product inside the shrink film on the work surface and slides it into the sealing area beneath the hood. Lowering the hood starts the sealing and shrinking cycle; at the end of the cycle the hood reopens automatically to allow removal of the packaged product and loading of the next item.

Optional

• Machine stand
• Stainless steel packing plate

Features

• Welding and heat-shrinking in a single operation
• PTFE-treated welding blade
• Height-adjustable internal packing plate
• Mobile product-holder plate independent from film reel support for better film adaptation
• Bell holding electromagnet and automatic bell release
• Air cooling of chamber body
• LCD control panel
• Durable, easy-to-maintain solid-state relays
• Reduced energy consumption
• CE regulatory compliance

LCD control panel features
Alphanumeric LCD panel with 6 storable work programs and a 16-bit microprocessor board for simple and accurate control. Functions include:

• Machine status display
• Electronic package counter (number of packages produced)
• Welding temperature adjustment
• Shrink (retraction) time adjustment
• Shrink chamber temperature adjustment
• Retraction delay adjustment
• Bell opening delay adjustment
• Fault/error display

Product information
Net weight: 95 kg
Supply voltage: 220 V, single-phase
Power frequency: 50 / 60 Hz
Installed power: 3.7 kW
Welding bar size: 560 x 430 mm
Maximum product height: 260 mm
Maximum production: Up to 300 pcs/hour
Maximum reel dimensions: 600 mm – Ø 250 mm
Usable films: PVC, polyolefin
Film thickness: Up to 30 µm

Technical specifications

• Net weight: 95 kg
• Supply voltage: 220 V, 1Ph
• Frequency: 50 / 60 Hz
• Installed power: 3.7 kW
• Welding bar dimensions: 560 x 430 mm
• Max. product height: 260 mm
• Max. production: up to 300 pcs/hour
• Max. reel dimensions: 600 mm – Ø 250 mm
• Compatible films: PVC, polyolefin
• Film thickness: up to 30 µm
• Combined welding + heat-shrink operation
• PTFE-treated welding blade
• Mobile product plate for better film adaptation
• Bell with electromagnet and automatic release
• Air-cooled chamber body
• LCD control panel with 6 memory programs and 16-bit microprocessor
• Adjustable controls: welding temperature, shrink time, chamber temperature, delays and cycles
• Solid-state relays, low energy consumption, CE conformity
