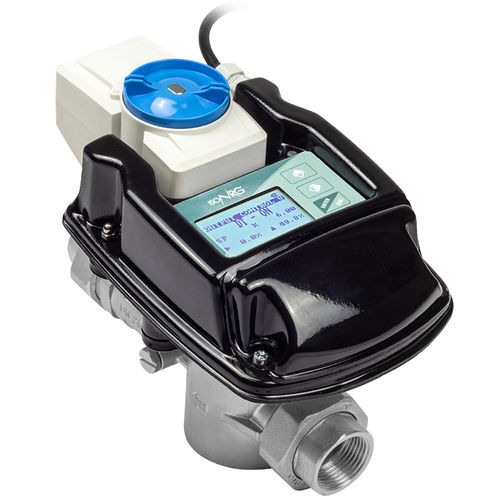

Regulating valve THERMAG VALVE CS611

ballelectrically-actuatedfor water

Presentation
The new THERMAG VALVE CS611 ISONRG is an intelligent 2-way regulating valve with an integrated electromagnetic thermal energy meter. It delivers reliable energy control, precise energy calculation and billing-grade measurement compliant with EN1434 and MID 2014/32/EU. Designed to measure and monitor energy consumption in heating and cooling systems for both new and existing buildings, with native connectivity to building management systems (BMS) and IoT platforms.

Principle of operation
The electromagnetic flow meter works according to Faraday's law of electromagnetic induction: a voltage is induced when a conductive liquid passes through a magnetic field. This technology ensures an accuracy of 0.8% of the measured value (r.v.) for conductive thermal fluids, including mixtures with additives.

Materials and construction

• Valve body: DZR corrosion-resistant brass (EN12165-CW617N-DW)
• Flow sensor: PEEK body with HC276 electrodes
• Valve unit: modulating 2-way ball valve, single inseparable device

Adjustable parameters

• Flow rate (Flowrate)
• Thermal power
• Temperature differential (ΔT)
• Inlet temperature (T1)
• Outlet temperature (T2)
• Differential pressure
• External source from process or BMS

Electronic unit and communications

• 3-line backlit LCD display
• Power supply: 24 V AC/DC
• Communication port: Serial RS485 / Ethernet RJ45
• Supported protocols: MODbus RTU/IP, BACnet MS-TP, FTPs, WEBs, NTPs (and other protocols for BMS/IoT integration)
• Integrated web server for data sharing and device status analysis

Inputs/Outputs and signals

• Digital output: 1 x ON/OFF, 1250 Hz, 100 mA, 30 Vdc
• Digital input: 1 x programmable
• Analog input: 1 x programmable 0–10 V or 0–22 mA

Special features

• Electromagnetic flow meter immune to the presence of additives in the thermal fluid
• Compatible with water+glycol mixtures (ethylene or propylene) up to 40%, with calculation compliant with MI004
• Operable as ePICV or eDPCV
• Up to 7 adjustable control variables for flow management

Approvals and certifications

• CE marking
• MID – MI004 (as indicated)

Technical characteristics / Specifications

• MID Directive 2014/32/EU
• Flow measurement accuracy: up to 0.8% r.v.
• Available flow sensor sizes: 1/2”, 3/4”, 1”, 1¼”, 1½”, 2”
• Qp [m³/h]: 1.5 / 2.5 / 3.5 / 6 / 10 / 15
• Sensor liquid temperature range: -10 °C … +100 °C
• Nominal pressure: PN16 (16 bar)
• Sensor and body materials: DZR brass and PEEK – Electrodes in HC276
• Temperature sensor type: PT500 – DS/PS – MI004 certified
• Temperature sensor cable lengths: 3 m / 5 m in silicone
• Temperature measurement range: 0 °C … +150 °C
• Display: 3-line backlit LCD
• Power supply: 24 V AC/DC
• Communications: RS485 and Ethernet RJ45; protocols MODbus RTU/IP, BACnet MS-TP and others
• I/O: ON/OFF digital output, programmable digital and analog inputs (0–10 V / 0–22 mA)
