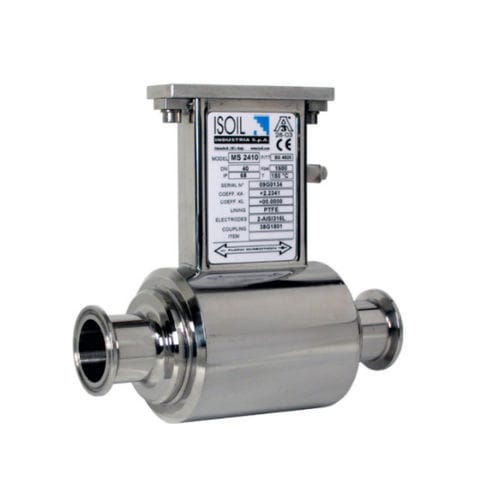

Electromagnetic flow meter MS 2410
for liquidsfor waterin-line

electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
Add to favorites
Compare this product


Characteristics

Technology
electromagnetic
Fluid
for liquids, for water
Mounting
in-line
Applications
sanitary
Process pressure

Max.: 25 bar (362.59 psi)

Min.: 16 bar (232.06 psi)

Process temperature

Max.: 150 °C (302 °F)

Min.: -20 °C (-4 °F)

Volumetric flow rate

Max.: 0.1 m³/s (9,888.1 ft³/s)

Min.: 0 m³/s (0 ft³/s)

Description

ISOMAG® – Sanitary sensor for electromagnetic flow meter MS 2410 The MS 2410 “sanitary” sensor is specific for food or pharmaceutical plants. It is resistant to the vacuum (absolute 200 mbar at 100°C), ideal for CIP cycles, 3A and FDA certificates. Body material: SS AISI304/316 Nominal diameter: from ND 3 to ND 100 Flow range: 0..280 m3/h Nominal pressure: from PN 16 to PN 25 Wide choice of process connections. Liquid temperature: from -20 to +150°C Lining materials: PTFE Wide choice of electrodes materials. Accuracy and repeatability data are according to the chosen converter (see converters section). For further information, see the enclosed technical data sheet.
