Voltage/current converter MV210
measuringelectric meteringUSB

voltage/current converter
voltage/current converter
Add to favorites
Compare this product


Characteristics

Type
voltage/current, measuring, electric metering
Bus
USB, M-Bus, 2 digital outputs
Applications
for electromagnetic flow meters
Other characteristics
compact, high-performance

Description

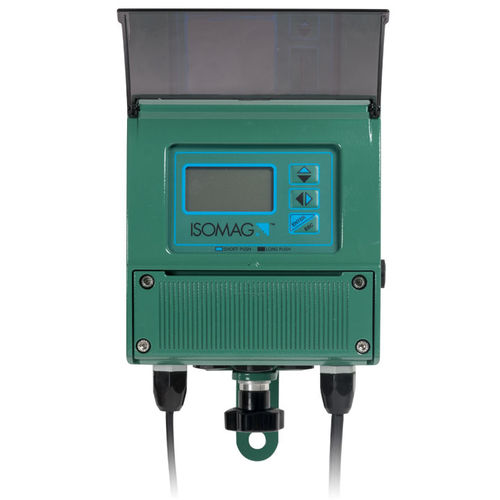

MV210 is the high performance converter for electromagnetic flowmeters of the ISOMAG® family. It is designed for all the applications where highest accuracy is required. Accuracy: ± 0,2% of the read value with flow velocity ≥ 0,5 m/s Repeatability: ± 0,1% Programming through keypad on front plate or via PC connected through mini USB cable adapter Available output: up to 2 digital output, up to 2 analogue output, Hart and Modbus communication Flexible mounting: Top or front view Galvanic separation: all inputs and outputs are galvanically insulated Housing material: Nylon reinforced with 15% of fiber glass, or Aluminum or AISI304 Protection rate: IP67 (on request IP68) Available functions: low flow rate cut-off, bidirectional measurement, peak cut-off, empty pipe detection, alarm limit etc. Available accessories: rechargeable backup battery (assures the measurement in case of power loss), 4 GB data logger, Built-In Verificator (BIV) for the monitoring of electric characteristic of the sensor and converter along time It can be used in combination with both full bore or insertion ISOMAG® flow sensors.
