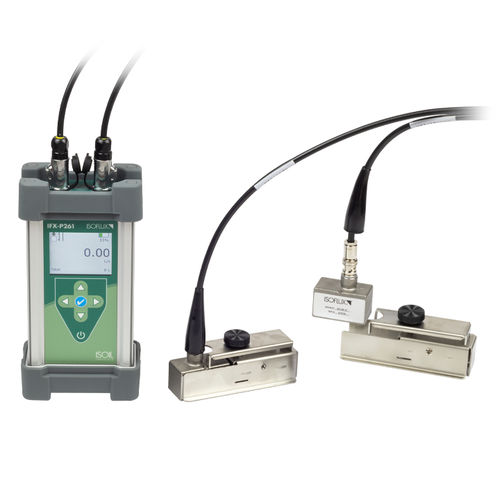

Ultrasonic transit-time flow meter IFX-P261

volumefor liquidsportable

Overview
The IFX-P261 portable clamp-on ultrasonic flowmeter is designed for short-term flow measurement campaigns. It measures liquids regardless of conductivity, pressure or chemical characteristics and is compatible with pipes of various materials. The instrument features a display for instantaneous flow rate and totalized volume, and a large data logger for extended recording. A simple, intuitive menu enables quick setup and start of measurements.

Key features

• Clamp-on ultrasonic, portable instrument for non-invasive flow measurement
• Suitable for liquids irrespective of conductivity and chemical characteristics
• Instantaneous flow rate display and totalized volume display
• Large data logger: up to 26 million data points
• Data download in .csv via USB-C
• Simple, intuitive menu for quick measurement setup

Applications
Short-term flow measurement campaigns and non-invasive on-site measurements where portability and rapid installation are required, such as temporary diagnostics, commissioning and maintenance checks.

Technical specifications

• SKU: 262-1
• Measurement principle: Ultrasonic based on transit time
• Speed range: 0.021 – 12.2 m/s
• Repeatability: 0.25% of the measured value
• Accuracy: ±1% of the measured value for V > 0.46 m/s
• Allowed solid or gas content in the fluid: < 2% by volume
• Protection: Robust case IP67 (with connected sensors)
• Ambient temperature (electronics): -20 to +60 °C
• Power supply: Internal rechargeable batteries, operating autonomy up to 15 hours with fully charged batteries
• Display: Backlit graphic LCD
• Weight (approx.): 5.5 kg (transport case with instrument and pair of sensors)
• Menu languages: Italian, English, French, Spanish (others on request)
• Data logger capacity: up to 26 million records; export via USB-C (.csv)
