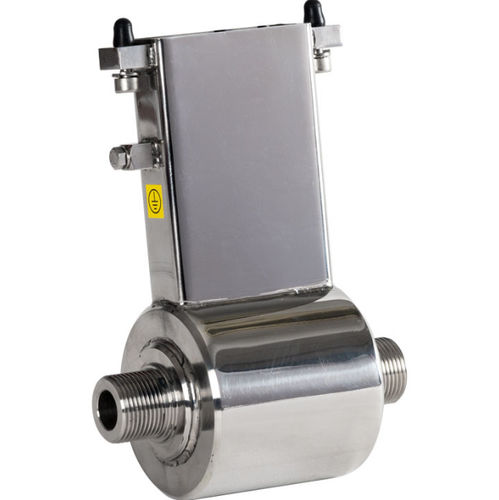

Electromagnetic flow meter MS501
for liquidsin-linesanitary

electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
electromagnetic flow meter
Add to favorites
Compare this product


Characteristics

Technology
electromagnetic
Fluid
for liquids
Mounting
in-line
Applications
sanitary
Process pressure

Max.: 40 bar (580.15 psi)

Min.: 16 bar (232.06 psi)

Process temperature

Max.: 150 °C (302 °F)

Min.: -20 °C (-4 °F)

Volumetric flow rate

Max.: 12,500 l/h (3,302.2 us gal/h)

Min.: 0 l/h (0 us gal/h)

Description

ISOMAG® – Microflow sensor for electromagnetic flow meter MS501 The MS 501 ?microflux? sensor is the smallest instrument of the series, with a wide range of process connections for all the applications. Body material: SS AISI304/316 Nominal diameter: from ND 3 to ND 20 Flow range: 0?12.500 l/h Nominal pressure: from PN 16 to PN 40 Wide choice of process connections. Liquid temperature: da -20 a +150°C Lining material: PTFE Wide choice of electrodes materials. Accuracy and repeatability data are according to the chosen converter (see converters section). For further information, see the enclosed technical data sheet.
