Battery-powered data-logger MV155
energyflowpressure

Battery-powered data-logger - MV155 - ISOIL Industria Spa - energy / flow / pressure
Battery-powered data-logger - MV155 - ISOIL Industria Spa - energy / flow / pressure
Battery-powered data-logger - MV155 - ISOIL Industria Spa - energy / flow / pressure - image - 2
Battery-powered data-logger - MV155 - ISOIL Industria Spa - energy / flow / pressure - image - 3
Battery-powered data-logger - MV155 - ISOIL Industria Spa - energy / flow / pressure - image - 4
Add to favorites
Compare this product
Go to the ISOIL Industria Spa website for more information

Characteristics

Measured quantity
temperature, pressure, flow, energy
Connector type
wireless, 4G
Applications
for monitoring, environmental, for harsh environments
Other characteristics
battery-powered, digital, rugged, with connector, with external sensor, IP68, multifunction, analog output, extended memory

Description

Overview

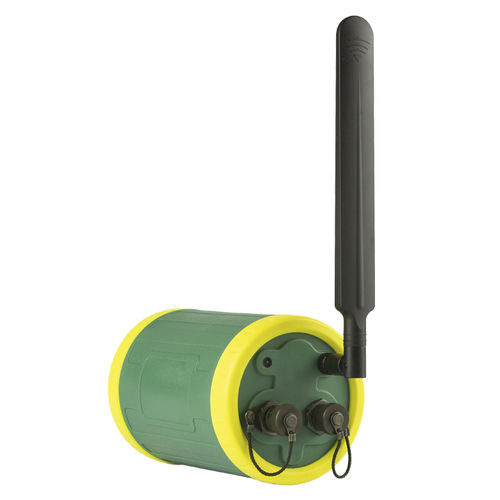

The MV155 is a battery-powered multi-parameter data logger with 4G wireless connectivity. It accepts lithium or alkaline batteries or an external power source. The reinforced PA6 Nylon enclosure enables outdoor installation and operation in aggressive environments while providing IP68 protection. The device supports configurable combinations of digital and analogue inputs, can power external sensors and securely transmits data to monitoring platforms (including ISOD@M) or third-party systems via encrypted channels.

Key features
  • Battery-powered (lithium or alkaline) or external power supply
  • 4G wireless communication (DNP3 protocol optional)
  • Reinforced PA6 Nylon enclosure with IP68 protection and MIL connectors
  • Encrypted data transmission for secure remote monitoring
  • Supply output for external sensors
  • High onboard memory; data downloadable to PC
  • Data delivery via e-mail, SMS or FTP
  • Intrusion alarm with instant SMS alert


I/O modules and measurement options
  • Multiple I/O module configurations available including:
    • Up to 4 digital inputs with flow calculation
    • Up to 2 ON/OFF digital inputs
    • Up to 2 voltage or current analogue inputs
    • Up to 2 analogue inputs for pressure or temperature
    • Up to 2 digital alarm outputs


Applications
  • Integration with electromagnetic and ultrasonic flow meters, energy meters and industrial automation systems
  • Remote monitoring and data acquisition in industrial, environmental and aggressive outdoor installations


Technical specifications
  • Model: MV155
  • Protection: IP68
  • Enclosure material: Reinforced PA6 Nylon
  • Power supply: Lithium or alkaline batteries, or external source
  • Sensor power output: available to feed external sensors
  • Connectivity: 4G (DNP3 optional)
  • I/O: Configurable digital and analogue inputs; digital alarm outputs
  • Security: Encrypted data transmission
  • Data transfer: e-mail, SMS, FTP; interoperable with ISOD@M and third-party systems
  • Alarm: Intrusion alarm with instant SMS
  • Memory: High capacity, data downloadable to PC
  • SKU: 213-1-2
  • Brand: ISOIL Industria
