Electromagnetic flow meter CS8100
for liquidscompact

electromagnetic flow meter
electromagnetic flow meter
Add to favorites
Compare this product


Characteristics

Technology
electromagnetic
Fluid
for liquids
Other characteristics
compact
Process pressure

10 bar (145.04 psi)

Process temperature

Min.: -20 °C (-4 °F)

Max.: 85 °C (185 °F)

Volumetric flow rate

Min.: 50 l/h (13.2 us gal/h)

Max.: 2,400 l/h (634 us gal/h)

Description

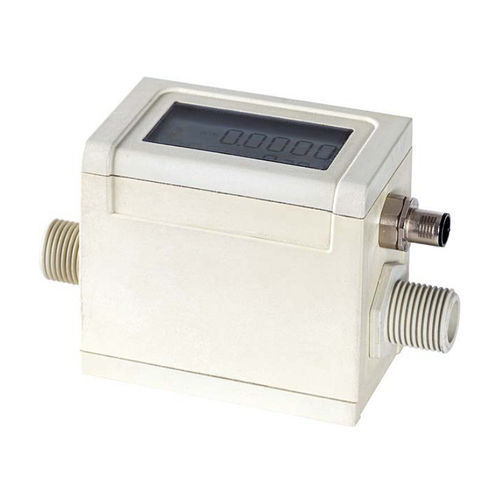

ISOMAG® – CS8100 Electromagnetic compact Flow meter Compact small electromagnetic flow meter with integrated display. Suitable for flow measurement in liquids with a minimum conductivity of 20 µS/cm. Measuring accuracy ± 1% of reading. Housing in Noryl reinforced with 30% fibreglass, protection rate IP 67, max liquid temperature 85°C. Electrodes in Hastelloy C. Power supply 18-30 VDC, electrical connections via 5-pin connector or via factory mounted 5 wire cable. Threaded process connections ½” or ¾” NPT or G male. Digital and analogue outputs can be configured via PC, using dedicated MCP software. Intended for use in cooling machines or chemicals dosing. Instrument is factory calibrated and ready for measuring without any additional configuration. For more information, refer to the data-sheet attachment.
