chemical pump / diaphragm / industrial / for liquified gas

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

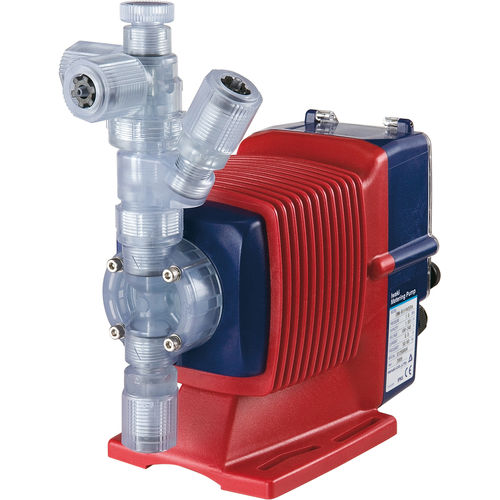

chemical pump chemical pump - EWN-A


  • Media:

    for chemicals

  • Technology:


  • Domain:


  • Other characteristics:

    for liquified gas, electromagnetic, feeding, chemical process, metering

  • Flow:

    Min.: 0 l/h (0 us gal/h)

    Max.: 6.6 l/h (1.7435 us gal/h)

  • Pressure:

    Min.: 0 Pa (0 psi)

    Max.: 1,000,000 Pa (145.038 psi)

  • Power:

    Min.: 20 kW (27.19 hp)

    Max.: 24 kW (32.63 hp)


The optimum for gaseous liquid feeding
This type equips automatic air vent mechanism. An air vent valve built-in pump chamber enables reliable air venting. Also equipped manual air vent valve enables easy pressure release in discharge piping. Gaseous liquid such as sodium hypochlorite can be injected without gas locking.

High resolution
The stroke rate can be set with 1spm increments in between 1 and 360spm. The stroke length adjustment further assists fine adjustment that the stroke rate adjustment cannot reach. Contentious precise chemical feeding is now available.

Multi voltage
The use of the multi voltage circuit design allows the pump to work anywhere in the world.
