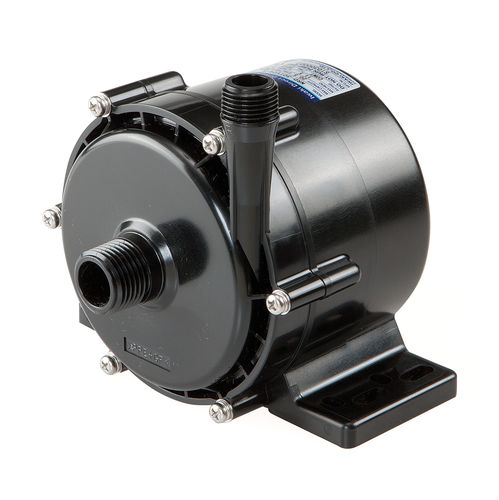

Canned motor pump NRD/RD seriesfor chemicalswith brushless DC motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- canned motor
- Fluid
- for chemicals
- Operation
- with brushless DC motor
- Mobility
- stationary
- Domain
- industrial
- Applications
- chemical process, high-temperature, adjustment
- Other characteristics
- compact, small, flow, seal
- Flow
Min.: 5.1 l/min
(1.34728 us gal/min)Max.: 70 l/min
(18.49204 us gal/min)- Head
Min.: 4.1 m
(13'05" )Max.: 15 m
(49'02" )- Power
Min.: 6 W
(0.01 hp)Max.: 72 W
(0.1 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 80 °C
(176 °F)- Length
Min.: 91 mm
(4 in)Max.: 127 mm
(5 in)- Width
78 mm, 126 mm
(3.07 in, 4.96 in)- Height
Min.: 78 mm
(3.07 in)Max.: 138 mm
(5.43 in)- Weight
0.4 kg, 1.2 kg, 1.5 kg
(0.88 lb, 2.65 lb, 3.31 lb)
Description
NRD series models are small canned motor centrifugal pumps powered by brushless DC motors. They are incredibly compact, lightweight, quiet and feature seal less construction designed to eliminate the potential for leakage.
The models in the NRD series offer a wider range of options with their flow adjustment feature (DC 1 to 5V), support for high-temperature liquid (0°C to 80°C), and capacity to be installed in areas with high ambient temperature (0°C to 50°C)
