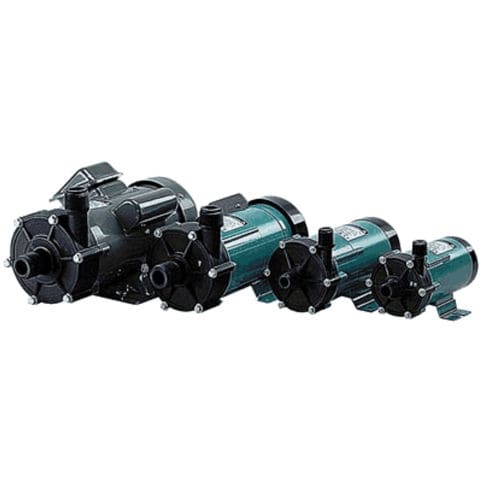

Centrifugal pump MD-F seriesfor chemicalsmagnetic-drivestationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for chemicals
- Operation
- magnetic-drive
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- chemical process
- Voltage
- 400 V
- Other characteristics
- compact
- Flow
Min.: 9 l/min
(2.37755 us gal/min)Max.: 125 l/min
(33.02151 us gal/min)- Head
Min.: 0 m
(0'00" )Max.: 10.5 m
(34'05" )- Power
Min.: 38 W
(0.05 hp)Max.: 260 W
(0.35 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 80 °C
(176 °F)- Length
186 mm, 231 mm, 270 mm, 320 mm
(7 in, 9 in, 11 in, 13 in)- Width
95 mm, 120 mm, 156 mm
(3.74 in, 4.72 in, 6.14 in)- Height
120 mm, 130 mm, 155 mm, 175 mm
(4.72 in, 5.12 in, 6.1 in, 6.89 in)- Weight
1.8 kg, 3.5 kg, 5.4 kg, 8.5 kg
(3.97 lb, 7.72 lb, 11.9 lb, 18.74 lb)
Description
The MD-F series guarantees naturally all advantages of the MD series. Beyond this especially constructed parts of ETFE and SiC ensure the chemical resistance against high corrosive liquids. Nearly all chemicals, such as concentrated sulphuric acid, can be pumped.
Three different impeller sizes are available depending on liquid and power requirement. The pumps are all with thread connection, either NPT1/2" or NPT1".
