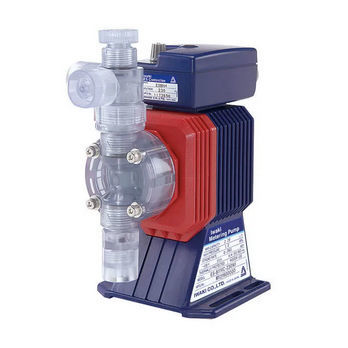

Diaphragm pump ESfor chemicalselectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for chemicals
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, chemical
- Material
- PTFE, EPDM
- Voltage
- 380 V
- Other characteristics
- compact, small, double, OEM, flow, coated
- Flow
Min.: 0.038 l/min
(0.01004 us gal/min)Max.: 0.4 l/min
(0.10567 us gal/min)- Pressure
Min.: 0.2 MPa
Max.: 1 MPa
- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 40 °C
(104 °F)
Description
High speed operation
Up to 360 strokes per minute results in high resolution chemical feed, with the elimination of slug-feed effects.
Compact size
Ideal for OEM applications, ES pumps are small, quiet, and lightweight.
Double ball check valves
The precision ball, seat and guide assembly ensure tight sealing to prevent loss of prime.
Long lasting diaphragm
PTFE coated EPDM is molded onto a solid core. A retainer plate is used to prevent diaphragm deformation and flow rate variation at higher pressures.
