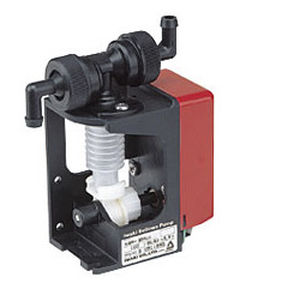

Base pump KB series
electricself-primingbellows

base pump
base pump
base pump
base pump
Add to favorites
Compare this product


Characteristics

Media
for bases
Operation
electric
Priming
self-priming
Technology
bellows
Domain
industrial
Applications
metering
Material
polypropylene
Other characteristics
compact, corrosion-resistant
Flow

Max.: 0.216 l/min (0.0571 us gal/min)

Min.: 0.0041 l/min (0.0011 us gal/min)

Pressure

Max.: 10,000 Pa (1.45 psi)

Min.: 0 Pa (0 psi)

Power

Max.: 4.5 W (0.01 hp)

Min.: 3.5 W (0 hp)

Description

Corrosion resistant, multi-purpose pump Manufactured using a combination of polypropylene and synthetic rubber, the pumps in this series can handle acids, alkalis, and various corrosive chemical solutions. Furthermore, capable of dry run operation and self-priming, these pumps can be used for multiple purposes as desired. Leakage-free, safe structure Since the pumps in this series are free of shaft seal, there is no trouble caused by liquid leakage. Also, the pump has its motor protected with a cover. Superior durability The specially designed bellows, molded as a single body, can ensure tens of millions of expansion and contraction cycles. Combined with its rugged drive mechanism, the pump provides superior durability. Wide range of discharge capacity The pump provides three types of flow rates by changing its bellows. Moreover, if the pump is a multi-head type, proportionate injection of several different liquids is also possible.
