Cable gland with spiral flex protector metric 500xxMxxPABSzzzz, Pg 50.0xx PABSzzzzpolyamideIP68metric
Add to favorites
Compare this product
Characteristics
- Material
- polyamide
- Protection level
- IP68
- Other characteristics
- threaded, metric, with spiral flex protector
- Cable diameter
Min.: 3 mm
(0.12 in)Max.: 18 mm
(0.71 in)- Thread diameter
Min.: 12 mm
(0.47 in)Max.: 25 mm
(0.98 in)- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description

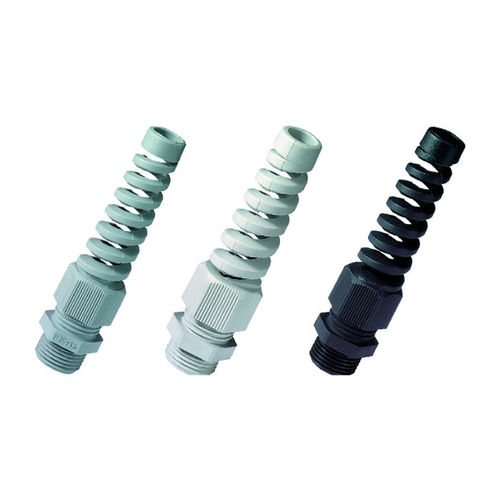

PERFECT cable gland with spiral top
The PERFECT cable gland with spiral top is the perfect cable entry solution for movable flexible cables.
Features:
- integrated anchorage for cables
- wide sealing and clamping range
- for cables from 3 to 18 mm
- easy-to-install
- temperature range -20 °C / +100 °C (dynamic) -40 °C (static, short term)
- Protection grade IP68 - 5 bar
- Test standard UL 514B
- with metric, Pg- or NPT-thread
