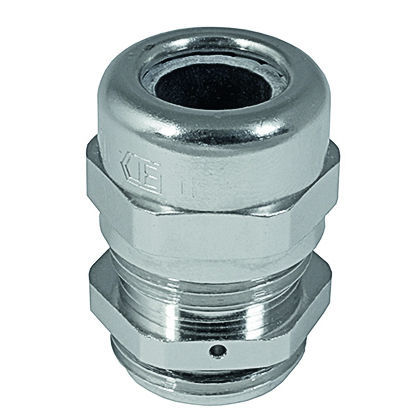

Vented cable gland PERFECT AirVent 50.6xx M/AVnickel-plated brassIP66IP68
Add to favorites
Compare this product
Characteristics
- Material
- nickel-plated brass
- Protection level
- IP68, IP66
- Other characteristics
- threaded, metric, vented
- Cable diameter
Max.: 16 mm
(0.63 in)Min.: 5 mm
(0.2 in)- Thread diameter
Max.: 25 mm
(0.98 in)Min.: 20 mm
(0.79 in)- Operating temperature
Max.: 100 °C
(212 °F)Min.: -20 °C
(-4 °F)
Description
The PERFECT AirVent cable gland: protection for hermetically sealed electro-technical and elecronic enclosures against condensation water from alternating temperature and pressure. Features:
- continuous ventilation
- adaptation of the inner pressure
- water entry pressure of the Membrane > 0,3 bar
- available in sizes M20, M25
- for cables from 5 to 16 mm
- temperature range -20 °C / +100 °C
- protection grade IP66 / IP68
