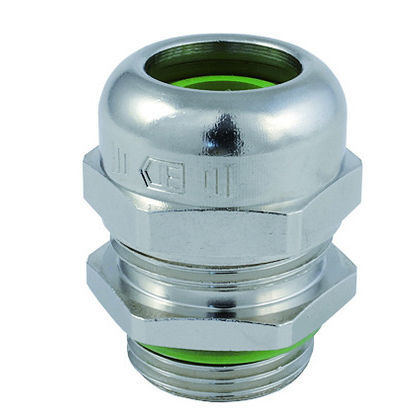

Stainless steel cable gland WADI heat K257-1xxx-zz
IP66IP67IP69K

Stainless steel cable gland - WADI heat K257-1xxx-zz - Jacob GmbH - IP66 / IP67 / IP69K
Stainless steel cable gland - WADI heat K257-1xxx-zz - Jacob GmbH - IP66 / IP67 / IP69K
Stainless steel cable gland - WADI heat K257-1xxx-zz - Jacob GmbH - IP66 / IP67 / IP69K - image - 2
Stainless steel cable gland - WADI heat K257-1xxx-zz - Jacob GmbH - IP66 / IP67 / IP69K - image - 3
Add to favorites
Compare this product

Characteristics

Material
stainless steel
Protection level
IP66, IP67, IP69K
Other characteristics
high-temperature
Cable diameter

Max.: 53 mm
(2.09 in)

Min.: 3 mm
(0.12 in)

Thread diameter

Max.: 63 mm
(2.48 in)

Min.: 12 mm
(0.47 in)

Operating temperature

Max.: 200 °C
(392 °F)

Min.: -40 °C
(-40 °F)

Description

The WADI heat cable gland made of stainless steel 1.4404 / AISI 316L is the perfect cable entry solution for high temperature applications up to +200°C. It has also a very good resistance against many chemicals. Features: - large-area sealing protects the cable - integrated anchorage with high retention - wide sealing and clamping range - for cables from 3 to 53 mm - the inner sealing ring can be removed easily for larger cables - very high UV, ozone and weather resistancy - temperature range -40 °C / +200 °C (dynamic) - protection grade IP 66 / IP67 / IP69 - very good resistance against many chemicals - with metric thread from M12 to M63
