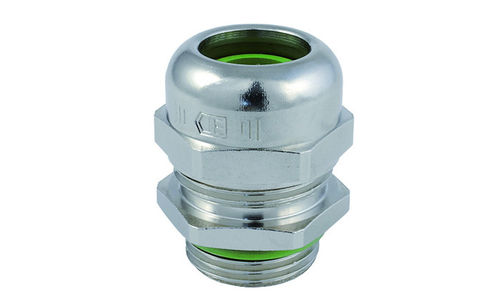

Nickel-plated brass cable gland WADI heat metric K155-1xxx-zzIP66IP67IP69K
Add to favorites
Compare this product
Characteristics
- Material
- nickel-plated brass
- Protection level
- IP66, IP67, IP69K
- Other characteristics
- high-temperature
- Cable diameter
Min.: 3 mm
(0.12 in)Max.: 53 mm
(2.09 in)- Thread diameter
Min.: 12 mm
(0.47 in)Max.: 63 mm
(2.48 in)- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 200 °C
(392 °F)
Description
The WADI heat cable gland made of nickel-plated brass is the perfect cable entry solution for high temperature applications up to +200°C. It has also a very good resistance against many chemicals.
Features:
- large-area sealing protects the cable
- integrated anchorage with high retention
- wide sealing and clamping range
- for cables from 3 to 53 mm
- the inner sealing ring can be removed easily for larger cables
- high UV, ozone and weather resistancy
- temperature range -40 °C / +200 °C (dynamic)
- protection grade IP 66 / IP67 / IP69
- very good resistance against many chemicals
- with metric thread from M12 to M63
