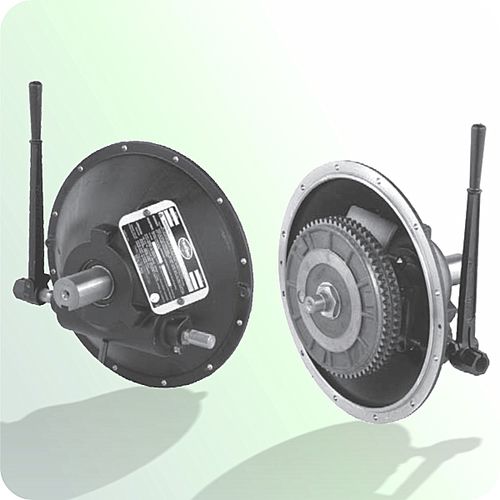

Disc clutch CA110, CA210 series

mechanicalPTOfor marine applications

Standard CA Series In-line Clutch; CA110 & CA210 Series » Off-the-shelf availability. » Proven design tailored to the industry. » Broader horsepower coverage up to 298 kW, 400 hp. » Sealed for life ball type main bearing. » Built-in hex nut eases adjustment verification. » Limited 2-year warranty. CA110P3, CA110P4 series, 3 and 4 SAE housings, max input 610 Nm, max safe speed 3100 rpm, weight 44 kg. CA210P3 series 3 SAE housing, max input 1220 Nm, max safe speed 3100 rpm, weight 51 kg. All clutch engagements to be with prime mover below 1000 RPM. High inertia loads may require use of larger clutch. See link for full specifications.
