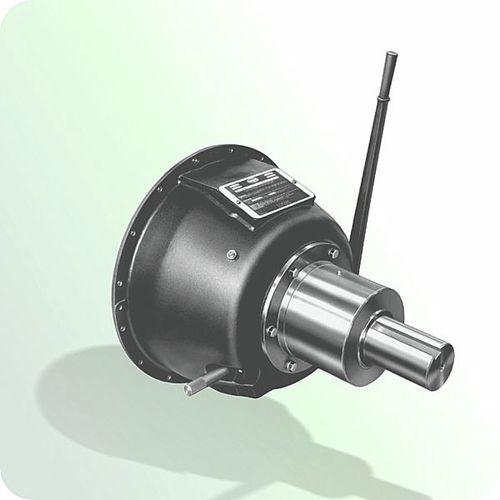

Friction clutch SP318IL Seriesmechanicalflange-mounted
Add to favorites
Compare this product
Characteristics
- Type
- friction
- Operation
- mechanical
- Other characteristics
- flange-mounted
- Torque
8,135 Nm, 10,169 Nm
(6,000.0681 ft.lb, 7,500.2695 ft.lb)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 2,350 rpm
(14,765.49 rad.min-1)
Description
Features & Benefits:
» Optional sintered iron plate.
» Optional ball bearing throw out collar.
» No pilot bearing.
» Built in hex nut.
» Creates 25% higher torque capacity with sintered iron plates.
» Allows for more frequent engagements.
» Ease of installation.
» Eases adjustment verification.
Specifications and load classifications based upon AGMA load characteristics for the SP318IL series are available via the provided link to the technical specifications document.
All clutch engagements to be with prime mover below 1000 RPM. High inertia loads may require use of larger clutch.
