disc clutch / manual / mechanical / with bearings
SP111P, SP211P series

Add to MyDirectIndustry favorites
Compare this product

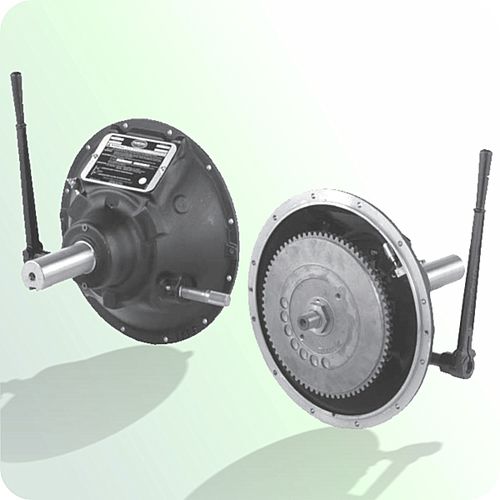

disc clutch / manual / mechanical / with bearings disc clutch / manual / mechanical / with bearings - SP111P, SP211P series
{{requestButtons}}

Characteristics

  • Type:

    disc

  • Operation:

    manual, mechanical

  • Other characteristics:

    with bearings

  • Applications:

    PTO, for heavy-duty applications

  • Torque:

    1,492 Nm (1,100.4427 ft.lb)

  • Rotational speed:

    Max.: 3,600 rpm (22,619.47 rad.min-1)

    Min.: 0 rpm (0 rad.min-1)

Description

Standard SP Series Clutch, SP111P & SP211P Series

» Available in sizes SAE 11.5 to SAE 21
» Tapered roller main bearings.
» Optional sintered iron plates.
» Optional ball bearing throw out collar.
» Built in hex nut.
» More suitable for side load applications.
» Creates 25% higher torque capacity with sintered iron plates.
» Allows for more frequent engagements.
» Eases adjustment verification.

SP111P1, SP111P2, SP111P3; 1, 2 and 3 SAE housings, max input torque 617 Nm(organic), 746 Nm (sintered), max safe speed for solid plates 2850 rpm with cast drive ring, 3600 rpm with nodular drive ring. Max safe speed for split plates 2200 rpm with cast drive ring and 3200 rpm with nodular drive ring, weight 58 kg.

SP211P1, SP211P2, SP211P3; 1, 2 and 3 SAE housings, max input torque 1234 Nm (organic), 1492 Nm (sintered), max safe speed for solid plates 2850 rpm with cast drive ring, 3000 rpm with nodular drive ring. Max safe speed for split plates 2200 rpm with cast drive ring and 3000 rpm with nodular drive ring, weight 79 kg.

See link for full technical specifications.
