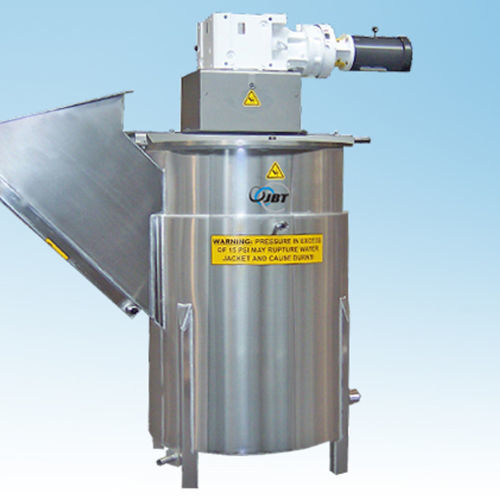

Fruit chopper

bladevertical440V three- phase

Product overview
Our Chopper/Blender reduces frozen products to a flowable or pumpable condition immediately after removal from cold storage, minimizing thaw time and quality loss. It is suitable for frozen concentrate, single‑strength juice and pulp and accepts containers up to 55‑gallon drums.

Features & Benefits

• Processing examples: 55 gal frozen 45° Brix concentrate ≈ 2.5 minutes; 55 gal frozen single‑strength juice ≈ 4 minutes; 5 gal frozen pulp ≈ 2 minutes.
• Accepts containers of various sizes and shapes, including 55‑gallon drums.
• Heating jacket compatible with hot water up to 190 °F (87.7 °C); recommended pressure < 15 psi (1.06 kg/cm2).
• Heavy‑duty chopper assembly with spiral cutter blades for rapid reduction of frozen product.

Details

• Tank: diameter 3 ft 9 in (1.143 m), depth 5 ft (1.524 m); capacity 300 gal (1135 L).
• Chopper shaft: 3 in (76.2 mm) diameter with spiral cutter blades.
• Drive: 5 hp totally enclosed 3‑phase motor, 1800 rpm, via 200:1 speed reducer.
• Dimensions (H x W x L): 8 ft 6 in x 4 ft 3 in x 8 ft 6 in (2.59 m x 1.29 m x 2.51 m).
• Electrical: 220/440 V, 3‑phase, 50/60 Hz.
• Net weight: 2,875 lbs (1,304 kg).

Options & Models

• Standard Chopper/Blender configuration. Contact sales for alternative capacities or custom options.

Technical specifications

• Tank capacity: 300 gal (1135 L); tank Ø 1.143 m; depth 1.524 m.
• Shaft diameter: 3 in (76.2 mm) with spiral blades.
• Motor: 5 hp, totally enclosed, 1800 rpm, 3‑phase; reducer ratio 200:1.
• Processing rates as listed above.
• Heating jacket: hot water to 190 °F (87.7 °C); pressure < 15 psi (1.06 kg/cm2).
• Overall dimensions and electrical supply as above.
