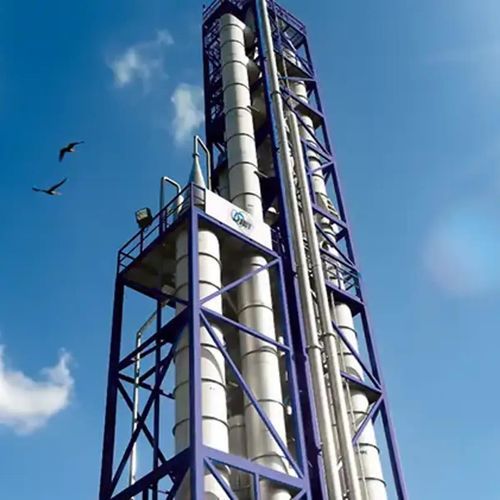

Shell and tube evaporator

hybridforced circulationprocess

Overview

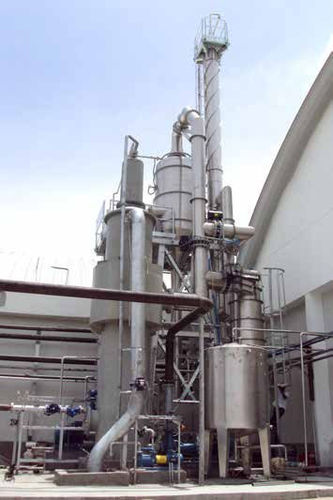

Our versatile line of hybrid evaporators processes super-hot, high-viscosity products such as tomato concentrate. The Hybrid Evaporator combines features of forced-circulation evaporators and the T.A.S.T.E. concept, using a series of multi-effect stages with upward forced-flow recirculation and vertical tube-in-shell heaters. Each effect includes a vertical tube nest, a liquid–vapor separation chamber and a recirculation pump.

Key benefits

• Reduced energy consumption through multi-effect design
• Fast to clean and simpler operation, lowering operating costs
• Reduced holding times to minimize thermal damage at high concentrations
• Special inducers deliver high efficiency at very low NPSH, preventing cavitation
• Improved organoleptic properties for high-quality output of viscous products

Versions

• Forced circulation evaporator configuration
• T.A.S.T.E. evaporator configuration

Service
Your trusted service partner across the equipment lifecycle: maximizing uptime, optimizing performance, controlling costs and extending equipment life. Service offerings include proactive service agreements, technical support and global coverage to ensure availability and consistent product quality.

Downloads
Title | Size
JBT Marel Hybrid Evaporator - EN | 1.2MB
JBT Marel Hybrid Evaporator - RU | 1.2MB

Characteristics / Technical specifications

• Designed for super-hot break, highly viscous and hard-to-process products (e.g., tomato concentrate)
• Hybrid architecture combining forced circulation and T.A.S.T.E. technologies
• Series of multi-effect stages with upward forced-flow recirculation
• Vertical tube-in-shell heaters used in all effects
• Each effect comprises: vertical tube nest; liquid–vapor separation chamber; recirculation pump
• Special inducers ensure very high efficiency at very low NPSH to prevent cavitation
• Reduced holding times to minimize thermal damage at higher concentrations
• Improved organoleptic properties for high-quality viscous product output
• Fast to clean and lower maintenance requirements, reducing total operating costs
