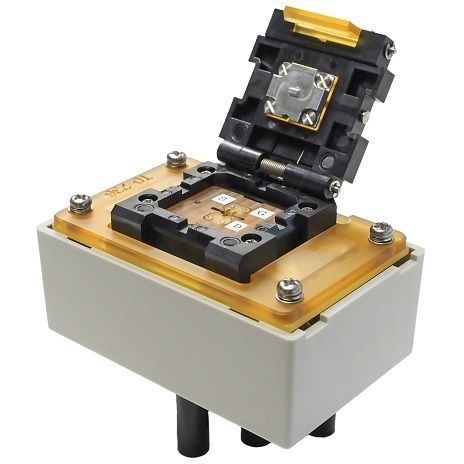

Power transistor test socket CS500-TO-252-6599-K

- IWATSU Semiconductor Curve Tracer Adapter Compatible with "CS-500" - Capable of measuring IV and CV characteristics of semiconductor devices. - Wiring for test sockets, printed circuit boards, and curve tracer mounting plugs - Flexible custom design tailored to various devices, including special conditions We provide one-stop services for designing custom sockets and printed circuit boards (PCBs) for the semiconductor curve tracer adapter 'CS-500,' as well as wiring the test adapter. You can also request test sockets independently. Cost-Effective Solution: Test sockets share components with standard products to optimize cost-performance. The "CS-500" is a test adapter from Iwatsu, compatible with curve tracers like the CS-3000/5000/10000 series. While standard test adapters are available for devices like TO packages, custom test sockets are required for testing non-standard devices. We have a proven track record in designing test sockets and printed circuit boards (PCBs) for the 'CS-500' and can provide solutions tailored to various devices. We complete the wiring inside the adapter, allowing you to directly attach it to the equipment and begin testing immediately. Preparation of Custom Adapter 1. Provide the test adapter. (Iwatsu-made, We can arrange it upon request.) 2. Custom design and manufacture of the test socket. 3. Design and manufacture of the printed circuit board (PCB). 4. Wiring of the PCB to the plug for mounting on the curve tracer Test Socket Specifications & Features IV and CV Characteristics Measurement: Measure the IV and CV properties of semiconductor devices. Flexible Custom Design: Tailored to fit any device, including those with unique requirements. Plug-and-Play Design: Fully wired internally, allowing direct attachment to your test equipment. Cost-Effective Solution: Test sockets share components with standard products to optimize cost-performance.
