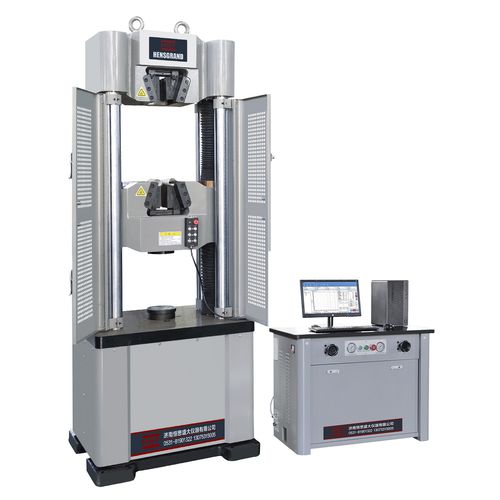

Universal testing machine WEW-2000Dforcecompressioncalibration
Add to favorites
Compare this product
Characteristics
- Test type
- force, compression, universal, calibration, tensile stress relaxation, stress test, tensile, bending, peel force, shearing resistance, shearing, fatigue, torsion, coefficient of friction, compression resistance, static load, tensile strength, constant load
- Operating mode
- computer-controlled, automatic, manual, semi-automatic, motorized
- Test material
- for springs, material, for plastics, adhesive, for fiber optics, for asphalt, for rebar, for chains, for rubber, for adhesive tape, for building materials, concrete, for composite materials, for plastic pipes, for bars and tubes, for cables, fabric, for flexible materials, for sheet metal, for cement, for cardboard boxes, for film, for pipes, for textiles, for wire, for paper, for rope, for electronic components
- Sector
- for production, for laboratory, for research and development, for the automotive industry, for railway applications, for quality control, for the construction industry, for the pharmaceutical industry, for workshops, for the electronics industry, for the packaging industry, for the textile industry
- Technology
- servo-hydraulic
- Configuration
- vertical, benchtop
- Other characteristics
- precision, static, high-stability, double-column, 4-column, high-speed, high-temperature, three-phase
Description
Suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing strength.
Standards:
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
Application
Computer display hydraulic universal testing machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing strength. It is capable of testing the characters of materials on physical & technology properties.
Specifications
Max. Load(kN)
2000
Load accuracy
Class 0.5
Measuring range
2％～100％FS
Displacement Resolution
0.01mm
Load resolution
Capacity/500,000
Tensile space(mm)
850
Compression space(mm)
850
Distance berween two columns
800
Piston stroke(mm)
250
Clamping Method
Hydraulic Automatic Clamp
Power Supply
3-phase, AC380V, 50Hz (Can Be Customized)
VIDEO
Catalogs
No catalogs are available for this product.
See all of Jinan Hensgrand Instrument Co.,Ltd‘s catalogsOther Jinan Hensgrand Instrument Co.,Ltd products
Hydraulic Universal Testing Machine
