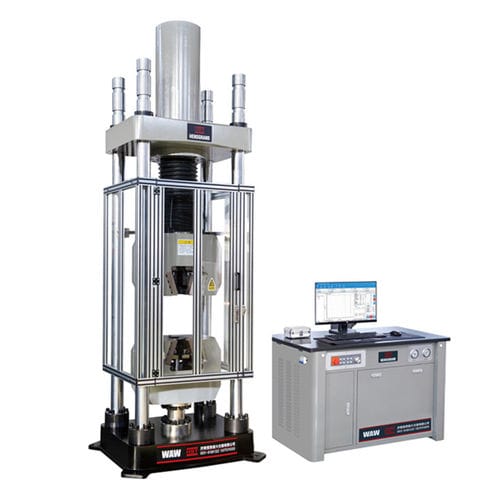

Universal testing machine WAW-F

tensiletensiontension/compression

WAW-F Series Universal Testing Machines is designed with single workspace. It can do tension, compression, bending and shearing tests. Standards: ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221, ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449. Application WAW-F Series Universal Testing Machines is designed with single workspace. It can do tension, compression, bending and shearing tests. Force measurement is through Load Cell. With long travel actuator stroke, it is suitable to test standard specimens, long length specimens, and specimens with large elongation. Specifications Structure Four column Max. Load capacity 2000kN 3000kN Accuracy of testing load Classe 0.5 scala ISO-7500 LoadTest Range 1%-100% Accuracy of deformation ±0.5% Deformation measurement range 1%-100% Accuracy of deformation ±0.5% Deformation resolution ±1/500000FS Actuator stroke 750mm 650mm Posion rising speed 60mm/min 60mm/min Max. Tensile space 880mm 850mm Max. Compression space 590mm 650mm Distance between columns 900mm 840mm Round sample range Ф15-Ф70m Ф15-Ф70m
