Shearing testing machine WAW-A compressionfrictionwall thickness
Add to favorites
Compare this product
Characteristics
- Test type
- shearing, compression, friction, wall thickness, Mar resistance, electric, tensile stress relaxation, calibration, coupling, tensile strength, universal, warping lifetime, shearing resistance, constant load, static load, compression resistance, tensile, bending, abrasion and wear, break force, stress test, stability, torque, pressure, tension, fatigue, consolidation, mechanical, deformation, temperature, creep, performance load, peel, tension/compression, life cycle, quality, endurance, force, durability, wear, performance, wire wrapping, hardness
- Operating mode
- computer-controlled, automatic
- Test material
- for plastics, material, for foam, for film, for rubber, for leather, for building materials, for chains, for fiber optics, for stabilizer bar, for high-strength bolts, for paper, brake, for glass, for cement, concrete, for springs, for packaging, for pipes, for textiles, for wire, for wire ropes and strands, for adhesive tape, for rebar, for flexible materials, for round bars, for bars and tubes, for metal wire, for composite materials, for sheet metal, fabric, for tubes, for cardboard boxes, hose
- Sector
- for the construction industry, industrial, for laboratory, for research and development, for the automotive industry, for quality control, for the optical industry, for the pharmaceutical industry, for railway applications, for workshops, for the electronics industry, for the food industry, for the aerospace industry, for telecommunications, for the textile industry, for the packaging industry, for the petroleum industry, for medical applications, for the beverage industry, for the aeronautical industry
- Technology
- digital, servo-mechanical, hydraulic, electro-hydraulic, servomotor, electro-dynamic
- Configuration
- vertical
- Other characteristics
- precision, static, high-stability, 4-column, high-speed, high-temperature, rugged
Description

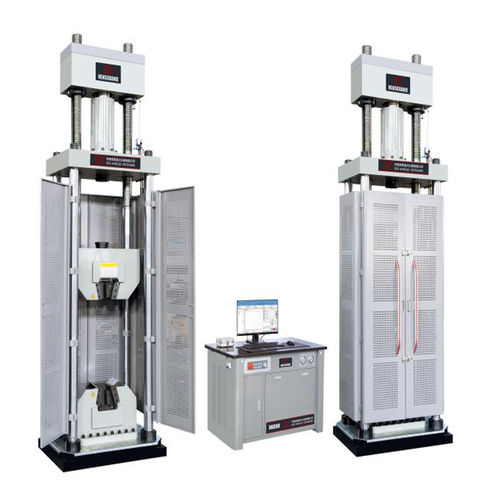

Microcomputer Control Strain Stress Controlled Hydraulic Universal Testing Machine
Application
WAW-3000A/4000A/5000A Hydraulic Universal Testing Machine is ideal for high-capacity tension,compression, bend/flex, and shear testing.
It accords with the correspondent requirements of BS, EN, ISO, ASTM,JIS and many other testing methods.
Specifications
Control Way - Constant stress uniform deformation constant displacement three closed loop control and program control dealing
Max. Load(kN) - 3000 - 4000 - 5000
Load accuracy - Class 1
Load range - 2%～100%F·S
Load resolution - Capacity/300, 000 (fully auto scaling of single measurement
Deformation Measurement Range - 2%~100%FS
Stroke - 250mm - 300mm - 300mm
Test speed(mm/min) - 0-80
Max. Tension Test Space (mm)
800 - 1000 - 1000
Nominal maximum specimen sizes Diamater(mm) - Φ20~Φ50,Φ50~Φ80, Φ80~Φ110 - Φ20~Φ50,Φ50~Φ80, Φ80~Φ110 - Φ20~Φ50,Φ50~Φ80, Φ80~Φ110
Nominal maximum specimen sizes Thickness(mm) - 5~50, 50~100 - 5~50, 50~100 - 5~50, 50~100
Column Effective Spacing(mm)
600 - 800 - 800
