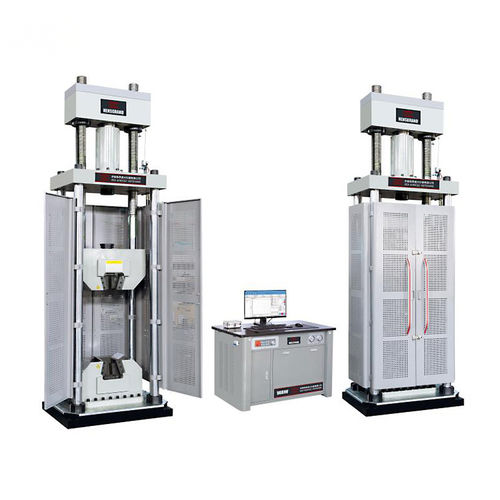

Compression testing machine HST WAW series

universaltensilebending

Microcomputer Control Strain Stress Controlled hydraulic universal testing machine Application WAW-3000A/4000A/5000A Hydraulic Universal Testing Machine is ideal for high-capacity tension,compression, bend/flex, and shear testing. It accords with the correspondent requirements of BS, EN, ISO, ASTM,JIS and many other testing methods. Specifications Control Way - Constant stress uniform deformation constant displacement three closed loop control and program control dealing Max. Load(kN) - 3000 - 4000 - 5000 Load accuracy - Class 1 Load range - 2%～100%F·S Load resolution - Capacity/300, 000 (fully auto scaling of single measurement Deformation Measurement Range - 2%~100%FS Stroke - 250mm - 300mm - 300mm Test speed(mm/min) - 0-80 Max. Tension Test Space (mm) 800 - 1000 - 1000 Nominal maximum specimen sizes Diamater(mm) - Φ20~Φ50,Φ50~Φ80, Φ80~Φ110 - Φ20~Φ50,Φ50~Φ80, Φ80~Φ110 - Φ20~Φ50,Φ50~Φ80, Φ80~Φ110 Nominal maximum specimen sizes Thickness(mm) - 5~50, 50~100 - 5~50, 50~100 - 5~50, 50~100 Column Effective Spacing(mm) 600 - 800 - 800
