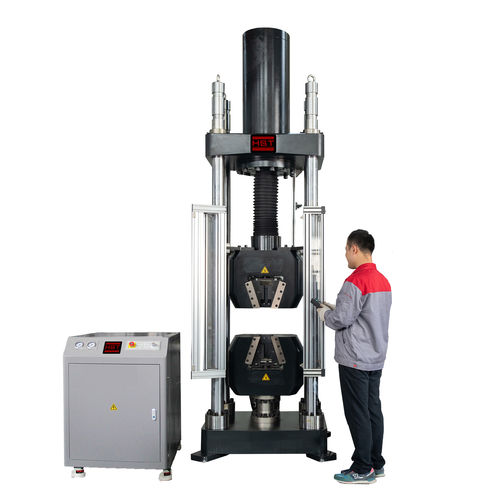

Universal testing machine WAW-F compressionperformance loadendurance
Add to favorites
Compare this product
Characteristics
- Test type
- universal, compression, performance load, endurance, wire wrapping, peel, creep, tensile, bending, mechanical, temperature, deformation, friction, tension, shearing, fatigue, torsion, force, durability, tensile stress relaxation, performance, static load
- Operating mode
- computer-controlled, manual, semi-automatic, motorized
- Test material
- for wire ropes and strands, for materials, for plastics, for rubber, for plastic pipes, for rope, for building materials, concrete, for springs, for packaging, for paper, for rebar, for composite materials, for plastic film, for cement and mortar, for sheet metal, for chains, for asphalt, for wire, for flexible materials, for leather, for bars and tubes, for pipes
- Sector
- industrial, for laboratory, for research and development, for the automotive industry, for destructive testing, for railway applications, for the construction industry, for workshops, for the electronics industry, for the aerospace industry, for the aeronautical industry, for the packaging industry, for the textile industry, for the beverage industry
- Technology
- servo-hydraulic
- Configuration
- vertical, benchtop
- Other characteristics
- precision, static, high-stability, 4-column, high-speed, axial, three-phase
Description
WAW-F Series Universal Testing Machines is designed with single workspace. It can do tension, compression, bending and shearing tests.
Standards:
ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221,ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.
Application
WAW-F Series Universal Testing Machines is designed with single workspace. It can do tension, compression, bending and shearing tests. Force measurement is through Load Cell. With long travel actuator stroke, it is suitable to test standard specimens, long length specimens, and specimens with large elongation.
Specification
Structure
Four column
Max. Load capacity
300kN
600kN
1000kN
2000kN
3000kN
Accuracy of testing load
Classe 0.5 scala ISO-7500 ±0.5
LoadTest Range
1%-100%
Accuracy of deformation
±0.5%
Deformation measurement range
1%-100%
Accuracy of deformation
±0.5%
Deformation resolution
±1/500000FS
Actuator stroke
650mm
650mm
700mm
750mm
650mm
Posion rising speed
200mm/min
200mm/min
200mm/min
60mm/min
60mm/min
Max. Tensile space
700mm
700mm
825mm
880mm
850mm
Max. Compression space
530mm
530mm
650mm
590mm
650mm
Distance between columns
550mm
570mm
780mm
900mm
840mm
Round sample range
Ф10-Ф32mm
Ф13-Ф40mm
Ф13-Ф45mm
Ф15-Ф70m
Ф15-Ф70m
Flat sample range
0-30mm
0-30mm
0-40mm
10-70mm
10-70mm
Power supply
3-phase-380V-50Hz
