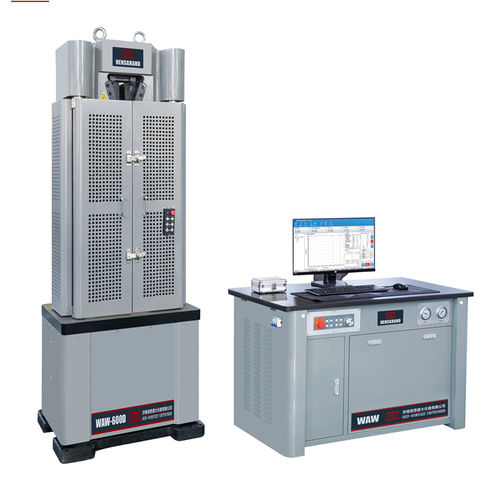

Universal testing machine WAW-1000D

compressionbendingtension

digital hydraulic universal compression bending test machine The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force. Standards: ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards. Specifications: Structure 4 columns and 2 screws Control way Constant stress uniform deformation constant displacement three closed loop control and program control dealing Max.load (kN) 1000kN Load accuracy ≤±1% Load range 2%-100%FS Load resolution 1/300000 Deformation Measurement Range 2%～100%FS Deformation accuracy ≤±1% Displacement resolution (mm) 0.01 Displacement error ≤±0.5% Max.piston stroke(mm) 250 Max piston moving speed 0-90mm/min stepless speed adjusting Crosshead lifting speed 200mm/min Max. tension test space 650mm (can customize) Max.Compression Test Space 500mm (can customize)
