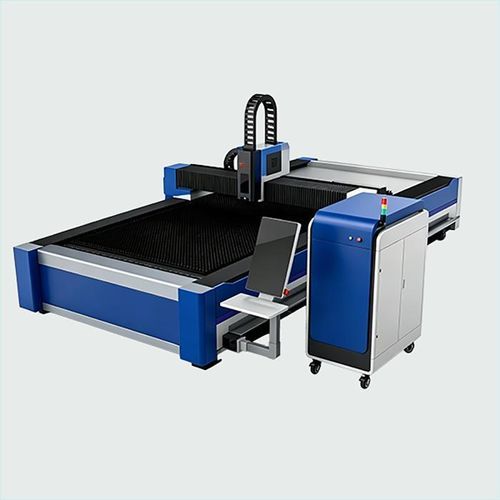

2D laser cutting machine KC seriesfiber laserinfrared lasersolid state laser
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser, 2D laser, infrared laser, solid state laser
- Material
- for aluminum, for stainless steel, for carbon steel
- Product handled
- for thin sheet metal, for metal sheets, sheet
- Applications
- for metal fabrication, for agricultural vehicles, for kitchenware industry
- Phase
- three-phase
- Configuration
- large-format, flatbed, gantry type
- Other characteristics
- precision, high-power, heavy-duty, modular, for mass production
- X travel
3,000 mm, 4,000 mm, 6,000 mm
(118.11 in, 157.48 in, 236.22 in)- Y travel
1,500 mm, 2,000 mm
(59.06 in, 78.74 in)- Cutting speed
110 m/min
- Laser power
1,500 W, 3,000 W, 6,000 W
- Repeatability
0.02 mm
(0.0008 in)- Acceleration
Max.: 14.72 m/s²
(48.29 ft/s²)Min.: 9.81 m/s²
(32.19 ft/s²)- Power supply
380 V
Description
Short Description
Product Details
The machine features a monolithic welded steel bed engineered for high rigidity to withstand continuous heavy-load operation without deformation, ensuring long-term structural integrity.
Precision Gantry Milling for Superior Accuracy
The bed is processed with gantry milling to guarantee installation surfaces for rails and racks achieve a flatness tolerance of 0.03 mm/1000 mm, providing a stable foundation for high-precision positioning.
Intelligent Centralized Auto-Lubrication
An intelligent, centralized lubrication system supplies timed, accurate oiling to guide rails and racks, reducing wear and extending the life of transmission components.
Optimized Serrated Table with Modular Design
The serrated worktable minimizes contact points to reduce heat conduction during cutting, preventing workpiece distortion. Its modular, detachable design enables fast slag removal and simplified maintenance.
Suitable Industries
Sheet metal fabrication, electrical cabinets, signage and advertising, kitchen equipment, metal furniture, fitness equipment, agricultural machinery.
Application Scenarios
General-purpose workshop cutting; small-batch sheet metal parts; thin to medium plate processing (carbon steel, stainless steel, aluminum); standard component mass production.
Technical Specifications
- Heavy-duty welded bed with high rigidity
- Intelligent centralized auto-lubrication system
- Precision gantry milling — flatness 0.03 mm/1000 mm
- Serrated, heat-resistant table for easy slag removal
Product Details
The machine features a monolithic welded steel bed engineered for high rigidity to withstand continuous heavy-load operation without deformation, ensuring long-term structural integrity.
Precision Gantry Milling for Superior Accuracy
The bed is processed with gantry milling to guarantee installation surfaces for rails and racks achieve a flatness tolerance of 0.03 mm/1000 mm, providing a stable foundation for high-precision positioning.
Intelligent Centralized Auto-Lubrication
An intelligent, centralized lubrication system supplies timed, accurate oiling to guide rails and racks, reducing wear and extending the life of transmission components.
Optimized Serrated Table with Modular Design
The serrated worktable minimizes contact points to reduce heat conduction during cutting, preventing workpiece distortion. Its modular, detachable design enables fast slag removal and simplified maintenance.
Suitable Industries
Sheet metal fabrication, electrical cabinets, signage and advertising, kitchen equipment, metal furniture, fitness equipment, agricultural machinery.
Application Scenarios
General-purpose workshop cutting; small-batch sheet metal parts; thin to medium plate processing (carbon steel, stainless steel, aluminum); standard component mass production.
Technical Specifications
- Machine Model: KC3015, KC4020, KC6020
- Working Area: 3000 mm × 1500 mm; 4000 mm × 2000 mm; 6000 mm × 2000 mm
- Laser Power: 1500 W / 3000 W / 6000 W
- X/Y axis positioning accuracy: 0.03 mm
- X/Y axis repeat positioning accuracy: 0.02 mm
- Maximum linkage positioning speed: 110 m/min
- Maximum acceleration: 1.0–1.5 G
- Rated power supply: 380 V / 50 Hz
