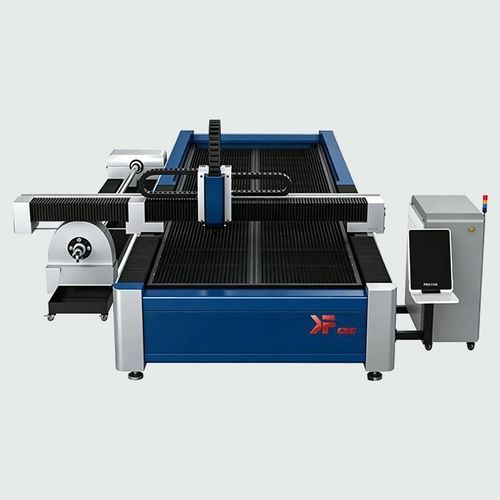

Laser cutting machine KC series

for aluminumfor stainless steelfor copper

Short Description

• Special high-precision chucks for small tubes
• High-rigidity bed for stable cutting
• Dust-proof design with internal and external extraction
• Optional semi-automatic loading

Overview
By integrating sheet and tube cutting onto a single platform, the KC series delivers the functions of two machines within one footprint, reducing CAPEX and optimizing workshop space. The system processes metal sheets, tubes and structural profiles (C-channels, I-beams, angle steel) and performs high-speed cut-offs, hole patterns and beveling in a single-pass setup.

The full-stroke mobile design enables precise cutting at both ends of pipes for zero-tail processing, improving material utilization and reducing waste.

Equipped with internal and external dust removal and patented dust-proof features, the machine ensures a cleaner work environment and extended service life. It cuts standard and special-shaped pipes in carbon steel, stainless steel, copper and aluminum.

Technical Parameters
Machine Model: KC3015T24 — KC4020T24 — KC6020T36
Processing Area: 3000mm × 1500mm — 4000mm × 2000mm — 6000mm × 2000mm
Laser Power: 3000W / 6000W
Clamping Range: (KC3015T24 & KC4020T24) Round Φ20–230mm; Square □20–230mm — (KC6020T36) Round Φ20–350mm; Square □20–350mm
Chuck Structure: 240 pneumatic chuck
Power Supply: 3PH 380V 50Hz

Suitable Industries: General job shops, metal fabrication, furniture manufacturing, construction hardware, multiproduct factories.

Application Scenarios: One machine for sheet and pipe cutting to save space; flexible multi-material production; mixed small-batch processing.

Specifications

• Series: KC series (KC3015T24, KC4020T24, KC6020T36)
• Processing area options: 3000×1500 mm, 4000×2000 mm, 6000×2000 mm
• Laser power options: 3000W or 6000W
• Clamping range (KC3015T24 & KC4020T24): Round Φ20–230 mm; Square □20–230 mm
• Clamping range (KC6020T36): Round Φ20–350 mm; Square □20–350 mm
• Chuck structure: 240 pneumatic chuck
• Power supply: 3-phase 380V, 50Hz
• Functions: Dual sheet and tube cutting, high-speed cut-offs, hole patterns, beveling, zero-tail processing
• Materials: Carbon steel, stainless steel, copper, aluminum, standard and special-shaped pipes
• Dust protection: Internal and external dust removal systems; patented dust-proof design
• Optional features: Semi-automatic loading
