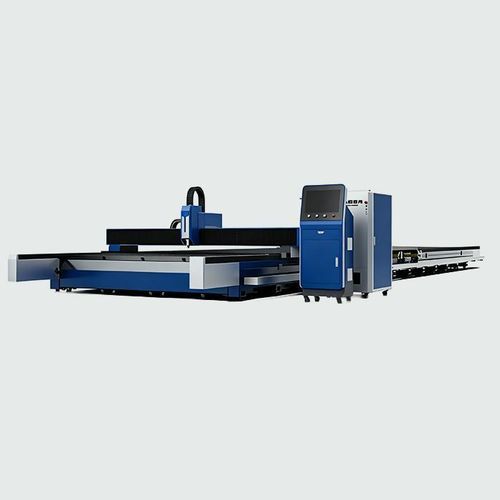

3D laser cutting machine KC series

for steelfor metalfor thick sheet metal

Short Description

• Ground rail system, extendable
• High dynamic gantry
• Dual drive high stability
• Optional 3D bevel cutting ±45°
• Complies with EU safety standards

1 Ultra-Long Workspace with Seamless Scalability
The ground-track system can be extended from standard setups up to 12–60 meters (and beyond) to accommodate oversized workpieces. Its modular rail sections enable on-site length extensions with minimal civil works, allowing production capacity to grow without replacing the main machine.

2 High-Dynamic Gantry for Rapid Throughput
Designed for high-speed reciprocating operation, the gantry runs along the floor rails with elevated idle speeds to reduce non-cutting cycle time. This configuration is optimized for high-volume, long-format component processing where throughput and repeatability are critical.

3 Lightweight Integrated Beam with Dual-Drive Synergy
Low-inertia, high-strength integrated beam minimizes vibration during high-speed moves. The synchronous dual-motor drive provides balanced torque distribution and precise positioning across the full travel length to maintain consistent cut quality on large sheets and profiles.

4 Optional 3D Beveling System for Welding Preparation
Upgradable with a professional 3D cutting head offering ±45° multi-angle tilting. Capable of V, X, Y and K-shaped bevels in a single pass to reduce secondary preparation and improve welding efficiency on thick plates.

Technical Parameters
Machine Model: KC8025 | KC12025 | KC13032 | KC16032 | KC24032 | KC34032
Working Area: 8000mm*2500mm | 12000mm*2500mm | 13000mm*3200mm | 16000mm*3200mm | 24000mm*3200mm | 34000mm*3200mm
Laser Power: 3000W/6000W/120000W/20000W | 6000W/120000W/20000W/30000W | 6000W/120000W/20000W/30000W | 120000W/20000W/30000W | 120000W/20000W/30000W/40000W | 6000W/120000W/20000W/30000W/40000W
X/Y Pos. Accuracy: ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm
X/Y Rep. Pos. Accuracy: ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm
Max. Linkage Pos. Speed: 110m/min | 110m/min | 110m/min | 110m/min | 110m/min | 110m/min
Max. Acceleration: 1.5G | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G
Rated Volt. & Freq.: 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz

Suitable Industries
Shipbuilding, wind power, steel structure, railway, bridge engineering, large machinery, pressure vessels

Application Scenarios
Extra-large sheet cutting; long-profile heavy plate processing; extendable bed; high-power 20kW–40kW systems; on-site customized length.

Specifications / Technical Data

• Series: KC series
• Working area options: from 8000mm*2500mm up to 34000mm*3200mm depending on model
• Laser power options vary by model (examples include 3kW, 6kW, 20kW, 30kW, 40kW and larger values as listed)
• X/Y positioning accuracy: ±0.03mm
• X/Y repeatability: ±0.02mm
• Maximum linkage (positional) speed: 110 m/min
• Maximum acceleration: 1.5G
• Rated voltage & frequency: 3-phase 380V, 50Hz
• Optional 3D beveling head with ±45° multi-angle capability
• Ground rail extendable on-site (modular rail design) for lengths from ~12 m up to 60 m and beyond
