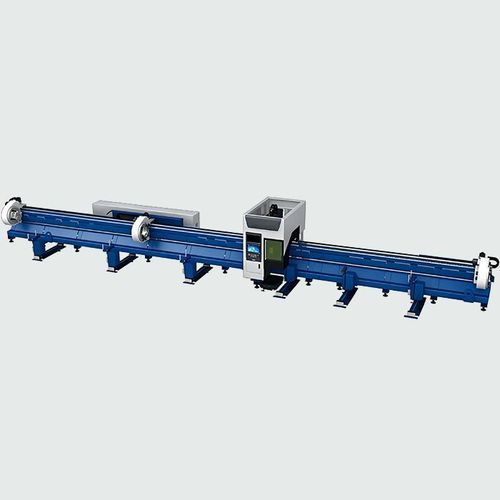

Laser cutting machine KCT12055T4for steeltubeservo-driven
Add to favorites
Compare this product
Characteristics
- Technology
- laser
- Material
- for steel
- Product handled
- tube
- Control type
- servo-driven
- Applications
- for industrial applications, for shipyards, for offshore applications
- Workpiece loading
- with automated loading, automated loading/unloading
- Phase
- three-phase
- Configuration
- large-format
- Other characteristics
- automatic, high-speed, high-productivity
- Tube diameter
Max.: 550 mm
(22 in)Min.: 40 mm
(2 in)- Cutting speed
2.5 m/s
(8.202 ft/s)- Laser power
3,000 W, 6,000 W, 12,000 W
- Acceleration
19.62 m/s²
(64.37 ft/s²)- Overall length
12,500 mm
(492 in)- Power supply
380 V
- Load capacity
2,000 kg
(4,409.2 lb)
Description
Short Description
1 High-Speed Performance & Superior Productivity
Engineered for maximum output, featuring peak acceleration of 2.0G, a rapid traverse speed of 150m/min, and chuck rotation speeds up to 200 RPM. These specifications reduce cycle time and increase throughput for large-diameter tube processing.
2 Servo-Driven Movable Front Chuck
The precision servo-driven movable front chuck allows the laser head to cut between the front and rear chucks, ensuring accurate positioning and consistent dimensional control for long workpieces.
3 Ultra-Short Tailings for Maximum Material Yield
Produces remnants of only 20mm–70mm depending on material, minimizing scrap and improving material yield for high-value or expensive tube stock.
4 Extended Unloading Support (Optional)
An optional 2–3 m unloading rack provides stable support and smooth discharge for extra-long finished parts, reducing handling damage and streamlining the post-cutting workflow.
TECHNICAL PARAMETERS
Machine Model: KCT12055T4
Clamping Range: Round Pipe Φ40-550mm; Square Pipe □40-540mm
Laser Power: 3000W/6000W/120000W
Max. Rotational Speed: 30 r/min
Eff. Tube Cutting Length: 12500 mm
Max. Single Tube Load Cap.: 2000 kg
Chuck Structure: 550 Pneumatic Chuck
Rated Volt. & Freq.: 3PH 380V 50Hz
Suitable Industries
Large pipe engineering, petroleum equipment, marine piping, heavy steel structure.
Application Scenarios
Super-large diameter pipe; ultra-heavy load; long pipe high-efficiency cutting.
Technical Specifications
- High speed & high productivity
- Servo movable chuck for long tube precision
- Ultra-short tailings, high material yield
- Auto-loading & stable unloading support
1 High-Speed Performance & Superior Productivity
Engineered for maximum output, featuring peak acceleration of 2.0G, a rapid traverse speed of 150m/min, and chuck rotation speeds up to 200 RPM. These specifications reduce cycle time and increase throughput for large-diameter tube processing.
2 Servo-Driven Movable Front Chuck
The precision servo-driven movable front chuck allows the laser head to cut between the front and rear chucks, ensuring accurate positioning and consistent dimensional control for long workpieces.
3 Ultra-Short Tailings for Maximum Material Yield
Produces remnants of only 20mm–70mm depending on material, minimizing scrap and improving material yield for high-value or expensive tube stock.
4 Extended Unloading Support (Optional)
An optional 2–3 m unloading rack provides stable support and smooth discharge for extra-long finished parts, reducing handling damage and streamlining the post-cutting workflow.
TECHNICAL PARAMETERS
Machine Model: KCT12055T4
Clamping Range: Round Pipe Φ40-550mm; Square Pipe □40-540mm
Laser Power: 3000W/6000W/120000W
Max. Rotational Speed: 30 r/min
Eff. Tube Cutting Length: 12500 mm
Max. Single Tube Load Cap.: 2000 kg
Chuck Structure: 550 Pneumatic Chuck
Rated Volt. & Freq.: 3PH 380V 50Hz
Suitable Industries
Large pipe engineering, petroleum equipment, marine piping, heavy steel structure.
Application Scenarios
Super-large diameter pipe; ultra-heavy load; long pipe high-efficiency cutting.
Technical Specifications
- Machine Model: KCT12055T4
- Clamping Range: Round Pipe Φ40-550mm; Square Pipe □40-540mm
- Laser Power Options: 3000W, 6000W, 120000W
- Max. Rotational Speed: 30 r/min
- Effective Tube Cutting Length: 12500 mm
- Max. Single Tube Load Capacity: 2000 kg
- Chuck Structure: 550 Pneumatic Chuck
- Rated Voltage & Frequency: 3PH 380V 50Hz
