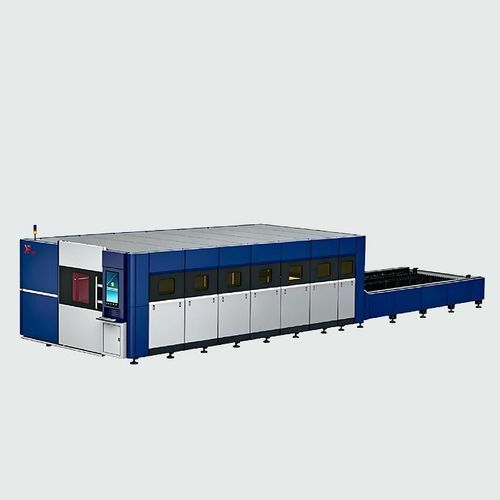

Laser cutting machine KC seriesfor aluminumfor stainless steelfor metal sheets
Add to favorites
Compare this product
Characteristics
- Technology
- laser
- Material
- for aluminum, for stainless steel
- Product handled
- for metal sheets
- Workpiece loading
- with automated loading
- Phase
- three-phase
- Configuration
- large-format, gantry type, double table
- Other characteristics
- automatic, high-power, heavy-duty, for mass production, fully-enclosed, with exchange table
- X travel
3,000 mm, 4,000 mm, 6,000 mm, 8,000 mm, 12,000 mm
(118.11 in, 157.48 in, 236.22 in, 314.96 in, 472.44 in)- Y travel
1,500 mm, 2,000 mm, 2,500 mm
(59.06 in, 78.74 in, 98.43 in)- Cutting speed
110 m/min
- Laser power
Max.: 120,000 W
Min.: 1,500 W
- Repeatability
0.02 mm, 0.03 mm
(0.0008 in, 0.0012 in)- Acceleration
11.77 m/s², 14.71 m/s²
(38.62 ft/s², 48.26 ft/s²)- Power supply
380 V
Description
Short Description
1 Non-Stop Production with Dual-Station Exchange
Maximize machine uptime using a dual-station pallet exchange system that allows cutting and loading/unloading to occur simultaneously. This configuration removes idle time between batches and supports continuous high-volume production workflows.
2 Fully Enclosed Housing for Safety and Environmental Control
The unit features a full protective enclosure combined with an advanced filtration and extraction system. It contains smoke, sparks and scattered laser radiation, helping workshops meet industrial safety and environmental requirements while maintaining a controlled production area.
3 Structural Integrity for Heavy-Duty Precision
A high-rigidity frame and low-center-of-gravity gantry deliver effective vibration damping and thermal stability. The result is consistent positioning accuracy (X/Y ±0.03mm, repeatability ±0.02mm) across prolonged operation and when processing thick plates.
4 Intelligent Safety & Maintenance Ecosystem
Standard safety light curtains, automated lubrication and climate-controlled electronics are integrated with smart monitoring. These systems reduce operator risk, prevent collisions and simplify preventive maintenance to lower total cost of ownership.
TECHNICAL PARAMETERS
Machine Model | KC3015EC | KC4020EC | KC6020EC | KC6025EC | KC8025EC | KC12025EC
Working Area | 3000mm×1500mm | 4000mm×2000mm | 6000mm×2000mm | 6000mm×2500mm | 8000mm×2500mm | 12000mm×2500mm
Laser Power | 1500W/3000W/6000W/12000W | 1500W/3000W/6000W/12000W/20000W | 3000W/6000W/12000W/20000W | 3000W/6000W/12000W/20000W | 3000W/6000W/12000W/20000W | 6000W/12000W/20000W/30000W
X/Y Pos. Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm
X/Y Rep. Pos. Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm
Max. Linkage Pos. Speed | 110 m/min | 110 m/min | 110 m/min | 110 m/min | 110 m/min | 110 m/min
Max. Acceleration | 1.2G | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G
Rated Volt. & Freq. | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz
Suitable Industries
Electrical enclosures, precision sheet metal fabrication, kitchenware production, automotive accessory manufacturing, clean workshop environments.
Application Scenarios
Medium-batch stable processing; dust-controlled or semi-enclosed production lines; operations requiring safe, efficient loading and unloading with high throughput.
Specifications / Technical Details
- Dual-station non-stop production with pallet exchange
- Full enclosed safety protection and fume containment
- Laser radiation and spark protection
- Integrated intelligent safety and monitoring system
- Designed for long-term stability under heavy-duty operation
1 Non-Stop Production with Dual-Station Exchange
Maximize machine uptime using a dual-station pallet exchange system that allows cutting and loading/unloading to occur simultaneously. This configuration removes idle time between batches and supports continuous high-volume production workflows.
2 Fully Enclosed Housing for Safety and Environmental Control
The unit features a full protective enclosure combined with an advanced filtration and extraction system. It contains smoke, sparks and scattered laser radiation, helping workshops meet industrial safety and environmental requirements while maintaining a controlled production area.
3 Structural Integrity for Heavy-Duty Precision
A high-rigidity frame and low-center-of-gravity gantry deliver effective vibration damping and thermal stability. The result is consistent positioning accuracy (X/Y ±0.03mm, repeatability ±0.02mm) across prolonged operation and when processing thick plates.
4 Intelligent Safety & Maintenance Ecosystem
Standard safety light curtains, automated lubrication and climate-controlled electronics are integrated with smart monitoring. These systems reduce operator risk, prevent collisions and simplify preventive maintenance to lower total cost of ownership.
TECHNICAL PARAMETERS
Machine Model | KC3015EC | KC4020EC | KC6020EC | KC6025EC | KC8025EC | KC12025EC
Working Area | 3000mm×1500mm | 4000mm×2000mm | 6000mm×2000mm | 6000mm×2500mm | 8000mm×2500mm | 12000mm×2500mm
Laser Power | 1500W/3000W/6000W/12000W | 1500W/3000W/6000W/12000W/20000W | 3000W/6000W/12000W/20000W | 3000W/6000W/12000W/20000W | 3000W/6000W/12000W/20000W | 6000W/12000W/20000W/30000W
X/Y Pos. Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm
X/Y Rep. Pos. Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm
Max. Linkage Pos. Speed | 110 m/min | 110 m/min | 110 m/min | 110 m/min | 110 m/min | 110 m/min
Max. Acceleration | 1.2G | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G
Rated Volt. & Freq. | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz
Suitable Industries
Electrical enclosures, precision sheet metal fabrication, kitchenware production, automotive accessory manufacturing, clean workshop environments.
Application Scenarios
Medium-batch stable processing; dust-controlled or semi-enclosed production lines; operations requiring safe, efficient loading and unloading with high throughput.
Specifications / Technical Details
- Product name: Full Enclosure with Exchange Platform
- Machine models available: KC3015EC, KC4020EC, KC6020EC, KC6025EC, KC8025EC, KC12025EC
- Working area options: 3000mm×1500mm up to 12000mm×2500mm
- Laser power options: configurations from 1500W up to 30000W (multiple combinations available)
- Positioning accuracy: X/Y ±0.03mm; repeatability ±0.02mm
- Max. positioning speed: 110 m/min
- Max. acceleration: up to 1.5G
- Electrical supply: 3-phase 380V 50Hz
- Safety features: full enclosure, laser radiation and spark protection, safety light curtains
- Maintenance features: automated lubrication, climate-controlled electronics, smart monitoring
