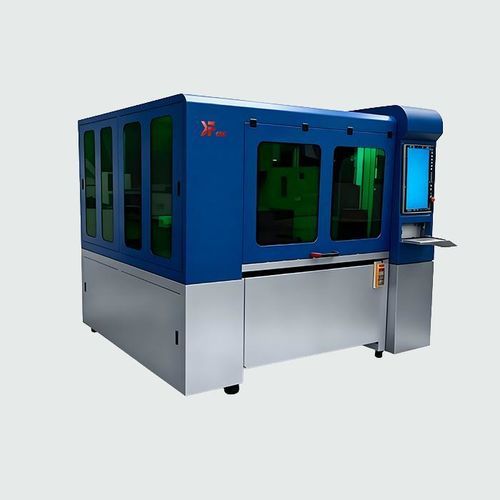

Laser cutting machine KC3015Sfor metalfor metal sheetsCNC
Add to favorites
Compare this product
Characteristics
- Technology
- laser
- Material
- for metal
- Product handled
- for metal sheets
- Control type
- CNC
- Applications
- for industrial applications, for the automotive industry, for the electronics industry
- Workpiece loading
- with automated loading
- Phase
- three-phase
- Configuration
- large-format, bridge
- Other characteristics
- high-speed, heavy-duty, with servo-motor, with automatic feeder
- X travel
3,000 mm
(118.11 in)- Y travel
1,500 mm
(59.06 in)- Cutting speed
110 m/min
- Laser power
1,500 W, 3,000 W, 6,000 W
- Repeatability
0.02 mm
(0.0008 in)- Acceleration
14.71 m/s²
(48.26 ft/s²)- Power supply
380 V
Description
Short Description
1 Robust High-Strength Architecture
The integration of dual-bus servo motors with a high-rigidity crossbeam significantly reduces vibration and improves stability during continuous heavy-duty cutting. This configuration delivers consistent high-torque motion while maintaining positional accuracy under load.
2 Ergonomic Drawer-Type Worktable
The drawer-style worktable simplifies material handling for medium-batch production. It reduces manual handling time and supports safer, semi-enclosed operation workflows that are compatible with automated line feeding.
3 Smart Multi-Zone Dust Extraction System
Configurable from 8 to 30 automated high-suction zones, the extraction system ensures effective smoke and particulate removal across the work area. The zoned design improves air quality, reduces filter load and lowers overall energy consumption during operation.
4 High-Dynamic Optimized Crossbeam
Engineered with a low center of gravity and a reinforced cross-section, the crossbeam enables rapid acceleration and high throughput. Constructed from lightweight, high-strength aerospace-grade materials, it resists deformation and preserves long-term machining precision.
TECHNICAL PARAMETERS
Machine Model: KC3015S
Working Area: 3000 mm × 1500 mm
Laser Power: 1500 W / 3000 W / 6000 W
X/Y Positioning Accuracy: ±0.03 mm
X/Y Repeatability: ±0.02 mm
Max. Linkage Positioning Speed: 110 m/min
Max. Acceleration: 1.5 G
Rated Voltage & Frequency: 3PH 380 V 50 Hz
Suitable Industries
Electrical enclosures, precision sheet metal, kitchenware, automotive accessories, clean workshops.
Application Scenarios
Medium-batch stable processing; dust-controlled environments; semi-enclosed safe operation; applications requiring easy loading/unloading and consistent throughput.
Technical Specifications
- High load, deformation resistant structure
- Dual-bus servo motors
- Ergonomic drawer-type worktable for easy loading
- Smart multi-zone dust extraction (8–30 zones)
- High-dynamic optimized crossbeam
1 Robust High-Strength Architecture
The integration of dual-bus servo motors with a high-rigidity crossbeam significantly reduces vibration and improves stability during continuous heavy-duty cutting. This configuration delivers consistent high-torque motion while maintaining positional accuracy under load.
2 Ergonomic Drawer-Type Worktable
The drawer-style worktable simplifies material handling for medium-batch production. It reduces manual handling time and supports safer, semi-enclosed operation workflows that are compatible with automated line feeding.
3 Smart Multi-Zone Dust Extraction System
Configurable from 8 to 30 automated high-suction zones, the extraction system ensures effective smoke and particulate removal across the work area. The zoned design improves air quality, reduces filter load and lowers overall energy consumption during operation.
4 High-Dynamic Optimized Crossbeam
Engineered with a low center of gravity and a reinforced cross-section, the crossbeam enables rapid acceleration and high throughput. Constructed from lightweight, high-strength aerospace-grade materials, it resists deformation and preserves long-term machining precision.
TECHNICAL PARAMETERS
Machine Model: KC3015S
Working Area: 3000 mm × 1500 mm
Laser Power: 1500 W / 3000 W / 6000 W
X/Y Positioning Accuracy: ±0.03 mm
X/Y Repeatability: ±0.02 mm
Max. Linkage Positioning Speed: 110 m/min
Max. Acceleration: 1.5 G
Rated Voltage & Frequency: 3PH 380 V 50 Hz
Suitable Industries
Electrical enclosures, precision sheet metal, kitchenware, automotive accessories, clean workshops.
Application Scenarios
Medium-batch stable processing; dust-controlled environments; semi-enclosed safe operation; applications requiring easy loading/unloading and consistent throughput.
Technical Specifications
- Model: KC3015S
- Working area: 3000 mm × 1500 mm
- Available laser powers: 1500 W, 3000 W, 6000 W
- Positioning accuracy (X/Y): ±0.03 mm
- Repeatability (X/Y): ±0.02 mm
- Maximum linkage positioning speed: 110 m/min
- Maximum acceleration: 1.5 G
- Power supply: 3-phase 380 V, 50 Hz
