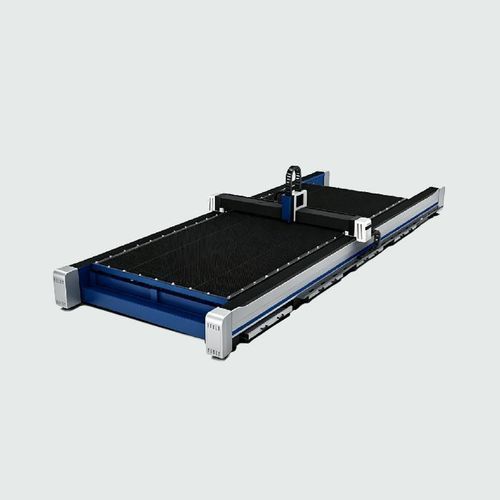

2D laser cutting machine KC series

for stainless steelfor carbon steelfor thick sheet metal

Short Description

• Modular segmented bed with customizable length
• Static workpiece architecture with moving gantry
• High-precision processing for oversized plates
• Intelligent zoned dust and slag extraction

Key Features

• Scalable modular bed design: Modular segmented-bed architecture allows machine length customization and on-site extension in a building-block approach without replacing the entire machine.
• Stationary workpiece, moving gantry for precision: Static-bed and moving-gantry configuration keeps heavy plates stationary during cutting to eliminate inertia-related errors and improve dimensional consistency on large formats.
• Intelligent synchronized zoned extraction: Multi-zone suction synchronized with the cutting head concentrates extraction at the active zone to improve dust and slag removal while reducing overall energy use.
• High-dynamic precision laser head: Advanced laser head with intelligent autofocus produces a concentrated beam for fast, accurate cuts with minimized heat-affected zone and clean edges.

TECHNICAL PARAMETERS
Machine Model | KC6025 | KC8025 | KC12025 | KC13032 | KC16032
Working Area | 6000mm*2500mm | 8000mm*2500mm | 12000mm*2500mm | 13000mm*3200mm | 16000mm*3200mm
Laser Power | 3000W/6000W/120000W/20000W | 3000W/6000W/120000W/20000W | 6000W/120000W/20000W/30000W | 6000W/120000W/20000W/30000W | 120000W/20000W/30000W
X/Y Pos. Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm
X/Y Rep. Pos. Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm
Max. Linkage Pos. Speed | 110m/min | 110m/min | 110m/min | 110m/min | 110m/min
Max. Acceleration | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G
Rated Volt. & Freq. | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz

Suitable Industries

• Shipbuilding
• Steel structure
• Construction machinery
• Rail transit
• Wind power
• Energy equipment
• Bridge engineering
• Large steel service centers

Application Scenarios

• One-time cutting of oversized plates
• High-power thick-plate processing
• Modular extendable bed for on-site extension
• Single-pass bevel cutting
• 24-hour heavy-duty stable production

Technical Specifications

• Machine Model: KC6025; KC8025; KC12025; KC13032; KC16032
• Working Area (per model): 6000mm*2500mm; 8000mm*2500mm; 12000mm*2500mm; 13000mm*3200mm; 16000mm*3200mm
• Laser Power (options per model): 3000W/6000W/120000W/20000W; 3000W/6000W/120000W/20000W; 6000W/120000W/20000W/30000W; 6000W/120000W/20000W/30000W; 120000W/20000W/30000W
• X/Y Positioning Accuracy: ±0.03mm (all models)
• X/Y Repeatability Accuracy: ±0.02mm (all models)
• Max. Linkage Positioning Speed: 110 m/min (all models)
• Max. Acceleration: 1.5G (all models)
• Rated Voltage & Frequency: 3PH 380V 50Hz (all models)
