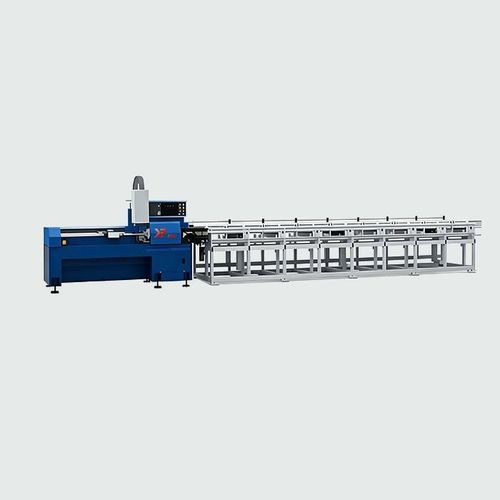

Laser cutting machine KCT series

for metaltubeservo-driven

Short Description

• Special high-precision chucks for small tubes
• High-rigidity bed for stable machining
• Dust-resistant enclosed components
• Optional semi-automatic loading system

Key Features
Ultra-Precision Specialized Chucks
Designed specifically for small-diameter tubes, the enclosed high-precision chucks deliver consistent clamping with accuracy within ±0.1 mm. The design minimizes contamination and ensures repeatable positioning for delicate workpieces.

High-Rigidity Heavy-Duty Bed
The machine bed is processed by gantry milling and precision finishing to maximize resistance to vibration, torsion and deformation. This structural rigidity supports stable, continuous operation and extends service intervals.

Semi-Automatic Auxiliary Loading System (Optional)
Optional feeder adapts to various tube specifications and lengths, staging up to 6 tubes to reduce manual handling and increase loading efficiency in production lines.

Advanced Servo-Driven Movable Front Chuck
The servo-driven movable front chuck enables the laser head to cut between front and rear chucks, ensuring precision on long workpieces and maintaining concentricity during high-speed processing.

TECHNICAL PARAMETERS
Machine Model: KCT3 / KCT6
Clamping Range (KCT3): Round Pipe Φ3–25 mm; Square Pipe □3–23 mm
Clamping Range (KCT6): Round Pipe Φ3–80 mm; Square Pipe □3–80 mm
Laser Power: 1500 W (KCT3); 1500 W / 3000 W (KCT6)
Max. Rotational Speed: 300 r/min (KCT3); 200 r/min (KCT6)
Effective Tube Cutting Length: 3000 mm (KCT3); 6500 mm (KCT6)
Chuck Structure: 30 pneumatic chucks (KCT3); 80 pneumatic chucks (KCT6)
Rated Voltage & Frequency: 3PH 380 V 50 Hz

Suitable Industries

• Medical device components
• Furniture fittings
• Lighting fixtures
• Electronics components
• Small pipe assemblies

Application Scenarios
Precision micro-tube cutting, thin-wall small-diameter pipe processing, high-speed stable industrial production lines.

Specifications / Technical Data

• Model: KCT3 / KCT6 (KCT series)
• Clamping range KCT3: Round Φ3–25 mm; Square □3–23 mm
• Clamping range KCT6: Round Φ3–80 mm; Square □3–80 mm
• Laser power options: 1500 W; 3000 W (optional for KCT6)
• Max rotational speed: 300 r/min (KCT3), 200 r/min (KCT6)
• Effective cutting length: 3000 mm (KCT3), 6500 mm (KCT6)
• Chuck: 30 pneumatic chucks (KCT3), 80 pneumatic chucks (KCT6)
• Rated voltage/frequency: 3-phase 380 V 50 Hz
