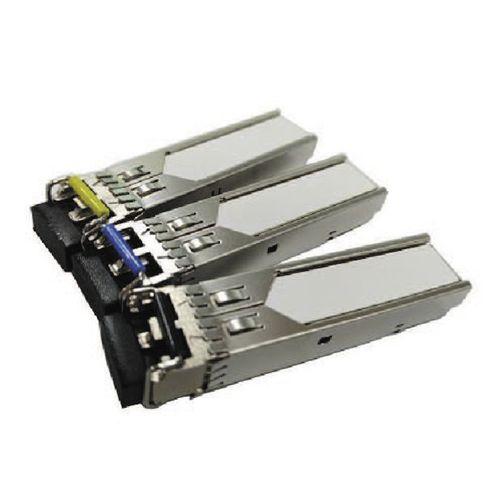

Data transmission transceiver module single-modedataLX SFP
Add to favorites
Compare this product
Characteristics
- Applications
- data transmission
- Other characteristics
- single-mode, data, LX SFP
Description
Small Form Factor Pluggable (SFP) transceiver module is specifically designed for the high performance integrated duplex
data link over single-mode. These transceiver modules are compliant with the SFP Multisource Agreement (MSA). With the hot pluggability, these modules offer an easy way to be installed into SFP MSA compliant ports at any time without the interruption of the host equipments operating online. The 1G LX SFP transceivers using a long wavelength (1310nm) FP laser diode enable data transmission up to 10km on a single-mode (9/125μm) optical fiber.
Benefits / Features
Compliant with SFP MSA
1.0625Gbps Fibre Channel FC-PI
100-SM-LC-L compliant
1.25Gbps IEEE 802.3 1000BASE-LX
Specification
Data Rage: 1G
Wavelength: 1310mm
Distance: 10KM
Media: SMFF
Power:-9.5 ~ -3dBm
Sen. -20dBm
Connector: LC
Product Environmental Compliance
RoHS compliance
