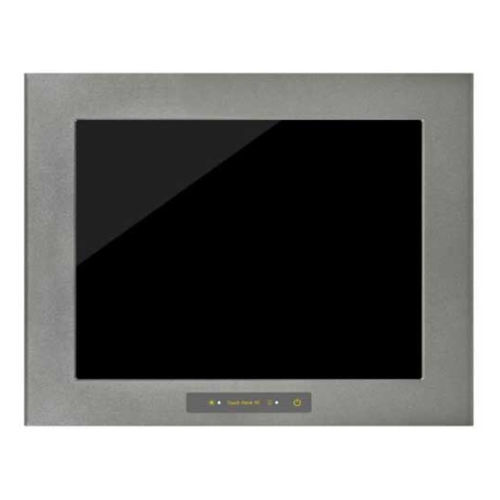

TFT LCD panel PC AIPAD-12KBU series

LED backlightresistive touch screen12"

12-inch Industrial Panel PC IP65 use high temperature analog resistive touch screen. 4 side USB3.0, 2 rear side USB2.0 pins, 3 USB2.0 integrated in MIX-IO, COM1, COM2 support RS232/422/485 (BIOS setting), COM3, COM4 support RS232 (MIX-IO), COM5, COM6 support serial port power, 2 x 5pin, 90°, 2.0mm, preset Wifi/4G antenna installation position, power indicator, hard disk indicator, optional expansion module supports TPM or TCM, 1 Mini -PCIe (with SIM card holder to support 4G module). Front panel IP65 waterproof. The rear shell is made of integrated aluminum alloy die-casting, and the heat dissipation is directly through the chassis during the heating period. WLED backlight 50,000 hours of work, average trouble-free working time: MTBF≥50000h. Industrial IP65 Panel PC has good vibration and shock resistance. IP65 panel computer support embedded/wall-mounted/desktop/100 X 100mm VESA installation, support watchdog, support windows10/windows7/WES7, 32bit/64bit system and support one Msata SSD or 2.5" SATA port Two full-function RS232/422/485 serial ports.
