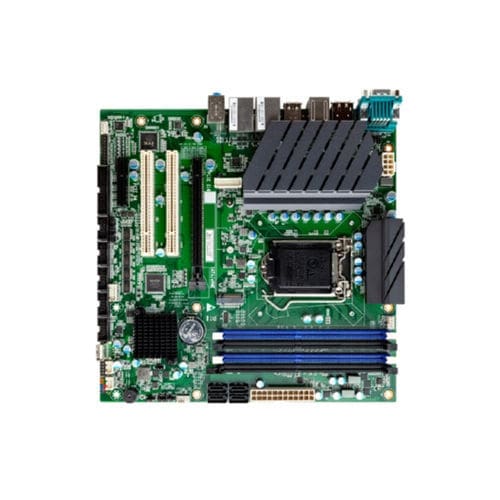

Micro-ATX motherboard AIoT9-H510

Intel® Core i3Intel® Core i5Intel® Core i7

－Intel LGA1200 package 10th&11th generation i9/i7/i5/i3/G all series CPU －AIoT9-H510 2, AIoT9-H510 W 4 DDR4 U-DIMM slots support up to 128GB －PCIe x16, PCIe x4, 2 PCI expansion slots －AIoT9-H510 supports 4,AIoT9-H510 W supports 8 USB3.2 －Four display ports, AIoT9-H510 dual display, AIoT9-H510B triple display －High Tg wide temperature PCB material to ensure wide temperature stability －Industrial-grade port protection blocks static electricity and surges －AIoT9-H510 supports dual Intel, AIoT9-H510 W supports 3 Intel network chips －Optimized interface and expansion slot layout effectively avoids interference Memory - AIoT0-H510, 2x single 32GB, up to 64GB According to the CPU supported memory specifications DDR4-2133/2400/2666/2933/3200 AIoT0-H510B, 4x single 32GB maximum support 128GB, support ECC memory Display controller - Intel CPU integrated display controller (depending on the CPU used) Display interface - Quad display output VGA+DP+HDMI+DVI-D AIoT0-H510-dual display, AIoT0-H510B-triple display Storage - 4x SATA 3.0 (SATA1 no signal when SATA protocol SSD is inserted on M.2) 1x M.2 2242/2280 Key-M support SATA/Nvme adaptive Audio - Rear IO supports MIC-In, Speaker-Out, Line-In three-hole audio Ethernet - AIoT0-H510: 2, Intel High Speed Ethernet ports: i226 2.5Gb or i219 AIoT0-H510B: 3, Intel High Speed Ethernet ports: i226 2.5Gb or i219
