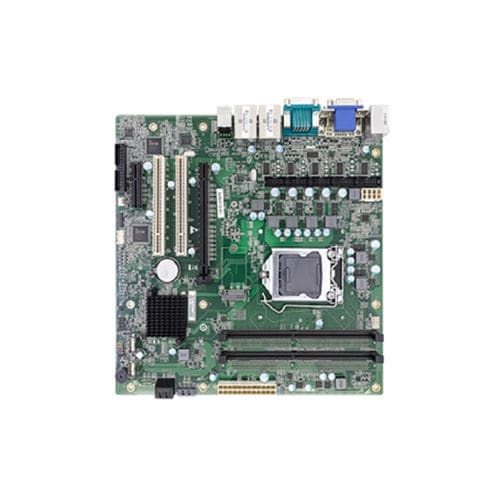

Micro-ATX motherboard AIoT9-H110

ATIntel® Celeron®Intel® Pentium

Micro ATX Industrial Motherboards equipped with Intel LGA1151 Gen.6/7/8/9th i3/i5/i7/i9/Pentium/Celeron CPU and Intel H110 Chipset, Option C236 for E3 V5 & V6 chipset. Support H110 support 2×288Pin DDR4, C236 support 4 ×288Pin DDR4 DIMM Up to 64GB memory. Comes with H110 support SATA, C236 support 5 SATA3.0 port Support SATA Raid0/1/5/10, 1 M.2 2280 (SATA3.0 bus) SSD storage. Supports Triple display of DVI-D+VGA+HDMI, C236 support Independent triple display. Installed Intel HD Graphics (Depends the CPU) controller. Support Mic-in, Speaker-out. This industrial motherboard has Dual intel GbE Ethernet ports, LAN1: Intel I219LM, LAN2: Intel I211AT. Industrial motherboard designed with 4 USB3.0 Type A Rear I/O, 2 USB3.0 pin header inside, 2 USB2.0 Type A Rear I/O ,1 USB2.0 Type A inside for USB Dongle, 2 USB2.0 pin header inside for front I/O（C236 support 6 USB2.0）, 1 x LPT port, 6 COM(Scalable 10 COM) ,COM1 support RS232/422/485, COM2-6 support RS232, 1×PS/2 2 in 1 Connector & 2 x USB 3 in 1 Connector, 8-bit Digital I/O, support 2 x 6 Pin LPC bus, extensible COM module, etc. ATX power supply, support ATX/AT mode. 1 x PCIe x16, 1 x PCIe x4 slot , 2 x PCI slot (32bit), 1 x M.2 2280 Slot support SATA SSD. Support watchdog. AMI UEFI BIOS, Win7/Win10/WES7/Linux, 32bit/64bit operating system.
