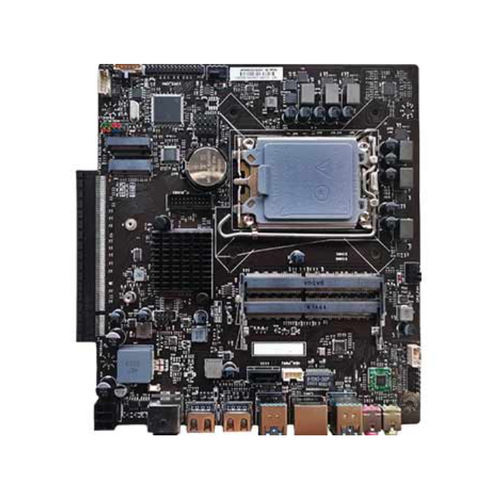

Mini-ITX motherboard H610I-PIntel® Celeron®Intel® PentiumIntel® Core i3
Add to favorites
Compare this product
Characteristics
- Format
- mini-ITX
- Processor
- Intel® Celeron®, Intel® Pentium, Intel® Core i3, Intel® Core i5, Intel® Core i7
- Chipset
- Intel® H610
- Memory
- DDR4 SO-DIMM, ROM
- Extension slot
- SATA3, M.2
- Applications
- industrial, network
- Memory frequency
- DDR4 2666 MHz, DDR4 3200 MHz, DDR4 2933 MHz
- Connectivity
- USB 2.0, USB 3.0, HDMI, RJ45, WiFi
Description
Thin Mini consumer motherboard is 170mm(W)×190mm(L). POWER GRAPHICS H610I-P installed Intel H610/B660 processor. Realtek ALC897 Audio and Intel i219V Network. Thin ITX built in DDR4 2666MHz/2933MHz/3200MHz Max: 64G memory and 2×DDR4 SO-DIMM Memory Slot. Thin mini-ITX's Expansion: 1×16X Side-mounted graphics card slot, 1×6PIN 12V Graphics card power supply interface (Max 170W RTX3060), 1×M.2 2230 (Support WIFI/BT), 1×M.2 2242/2280 (Support SATA/NVME). I/O: 1×DC (19V) Power input (10mm/4PIN), 1×HDMI IN, 1×HDMI OUT, 4×USB3.0, 1×RJ45, 1×OUT, 1×MIC. Plug-in: 1×LVDS (30Pin 2.0mm)、1×LCD_VOL_SEL Display Voltage Jump Cap (5V/12V), 1×Inverter, 1×Scale, 1×BKL_VOL_SEL Voltage Jump Cap (12V/19V), 1×SATA3.0, 1×SATA Power, H610: 2 × double USB2.0 pins, B660: 2 × double USB2.0 pins, 1 × double USB3.0 pins, 1×4 PIN CPU Fan, 1×4 PIN System Fan, 1×Audio, 1×Speak, 1×Panel PIN, 1×JBAT PIN, 1×BIOS PIN. BIOS: 128M flash ROM, AMI UEFI BIOS, PC Health, WOL.
