Mini-ITX motherboard A300IAMDIntel®ROM
Add to favorites
Compare this product
Characteristics
- Format
- mini-ITX
- Processor
- AMD
- Chipset
- Intel®
- Memory
- ROM
- Extension slot
- SATA, M.2
- Applications
- industrial, network
- Memory frequency
- DDR4 2400 MHz, DDR4 2666 MHz, DDR4 2933 MHz
- Connectivity
- LVDS, USB 2.0, USB 3.0, RJ45, WiFi
Description

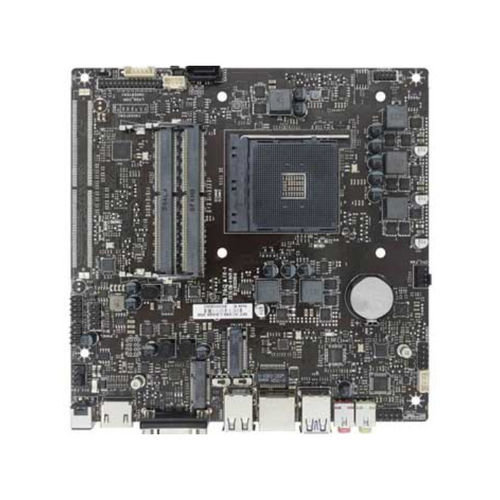

Thin Mini-ITX is 170mm(W)×170mm(L). AMD Mini ITX Motherboard A300I install AMD A300 processor, Realtek ALC662 Audio and Realtek RTL8111H Network. Consumer montherboard's CPU is AMD Bristol/Raven/Picasso/Renoir, Socket AM4 65W. Memory is DDR4 2400MHz/2666MHz/2933MHz, 2×DDR4 SO-DIMM slot.
Mini consumer motherboard has 1×M.2 2230（Support WIFI/BT）and 1×M.2 2280 (Support SATA/NVME mode SSD). I/O: 1×DC(19V) Power input, 1×HDMI, 1×VGA, 1×RJ45, 2×USB3.0, 2×USB2.0, 1×Out、1×Mic. Plug-in: 1×LVDS(30Pin 2.0mm)、1×LCD_VOL_SELDisplay Voltage Jump Cap(5V/12V), 1×Inverter、1×BKL_VOL Backlight Voltage Jump Cap (12V/19V), 1×4 PIN CPU, 1×3 PIN SYS/GPU, 1×SATA3.0, 1×SATA power, 2×USB2.0, 1×Panel, 1×Audio, 1×Speak. BIOS: 128M flash ROM, AMI UEFI BIOS, PC Health, WOL
