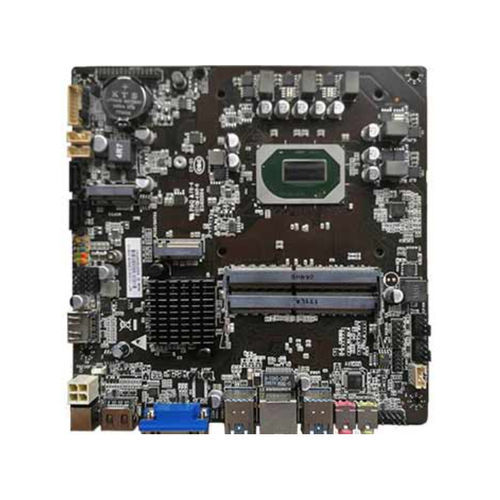

Mini-ITX motherboard 9300H

Intel® Core i5quad-coreIntel®

Thin Mini-ITX is 170mm×170mm×6L. CORE i5 Motherbaord 9300H/10200H installed Intel Q270 processor and CPU is Intel i5-10200H, Core i5 Quad-core and Eight-thread 2.40GHz（Turbo: 4.10GHz）TDP: 45W. Realtek ALC897 for Audio and Intel i219V for Network. Consumer motherboard's memory is DDR4 2666MHz/2933MHz Max: 64G and 2×DDR4 SO-DIMM Memory Slot. Thin motherboard equipped with 1×M.2 2230 (Support WIFI/BT) and 1×M.2 2280 (Support SATA/NVME SSD). I/O: 1×DC Power (12-19V), 1×HDMI, 1×COM (option VGA), 1×RJ45, 4×USB3.0, 1×Out, 1×Mic. Mini-ITX motherboard designed with Plug-in: 1×LVDS (30Pin 2.0mm), 1×LCD_VOL_SEL Display Voltage Jump Cap (5V/12V), 1×4PIN MON_SW、1×LVDS_OFF, 1×8PIN Inverter、1×BKL_VOL Backlight Voltage Jump Cap (12V/19V), 2×SATA3.0, 2×SATA Power, 1×4 PIN CPU Fan, 1×4 PIN CPU Fan, 1×Audio, 1×Speak, 2 × double USB2.0 pin, 1×FPANEL pin, 1×JBAT pin, 1×JBIOS pin, 1×JBIOS pin. BIOS: 128M flash ROM, AMI UEFI BIOS, PC Health, WOL.
