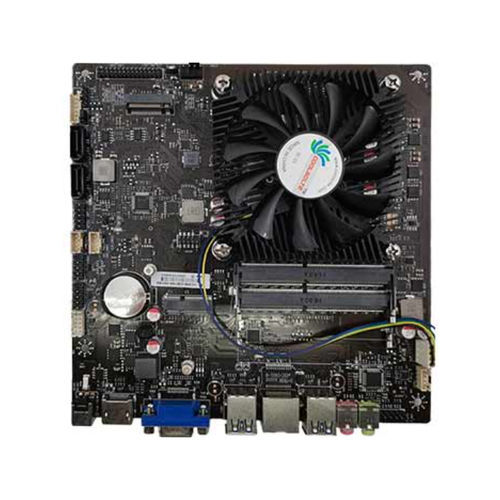

Mini-ITX motherboard 8259U
Intel® Core i5"Intel® Core™ i5-10210Uquad-core

Mini-ITX motherboard - 8259U - JWIPC TECHNOLOGY CO., LTD. - Intel® Core i5 / "Intel® Core™ i5-10210U / quad-core
Mini-ITX motherboard - 8259U - JWIPC TECHNOLOGY CO., LTD. - Intel® Core i5 / "Intel® Core™ i5-10210U / quad-core
Mini-ITX motherboard - 8259U - JWIPC TECHNOLOGY CO., LTD. - Intel® Core i5 / "Intel® Core™ i5-10210U / quad-core - image - 2
Add to favorites
Compare this product

Characteristics

Format
mini-ITX
Processor
Intel® Core i5, "Intel® Core™ i5-10210U, quad-core
Chipset
Intel®
Memory
DDR4 SO-DIMM, ROM
Extension slot
SATA3, M.2
Applications
industrial, network
Memory frequency
DDR4 2400 MHz, DDR4 2666 MHz
Connectivity
LVDS, USB 2.0, WiFi

Description

Thin Mini-ITX is 170mm×170mm×6L. CORE i5 Motherbaord 8259U/10210U equipped with Intel Coffee/Comet Lake processor and Intel i5-8259U/i5-10210U CPU, Core i5 Quad-core and Eight-thread 2.3GHz (3.8GHz)/1.6GHz (4.2GHz). Realtek ALC897 for Audio and Intel i219V for Network. Consumer motherboard's Memory is DDR4 2400MHz/2666MHz Max: 32G and 2×DDR4 SO-DIMM slot. SSD slot: 1×M.2 2280 (Support SATA/NVME mode SSD) and WIFI Slot: 1×M.2 2230 (Support WIFI/BT). I/O: 1×DC Power input (12-19V), 1×HDMI, 1×VGA (option DP), 1×RJ45, 4×USB3.0, 1×Out, 1×Mic. Plug-in: 1×LVDS (30Pin 2.0mm), 1×LCD_VOL_SEL Display Voltage Jump Cap (5V/12V), 1×Inverter (option 8PIN), 1×BKL_VOL Backlight Voltage Jump Cap (12V/19V), 1×SATA3.0, 1×SATA Power, 2× double USB2.0, 1×Audio, 1×Speak, 1×FPANEL, 1×4PIN CPU Fan, 1×JBAT, 1×JBIOS. BIOS: 128M flash ROM, AMI UEFI BIOS, PC Health, WOL.
