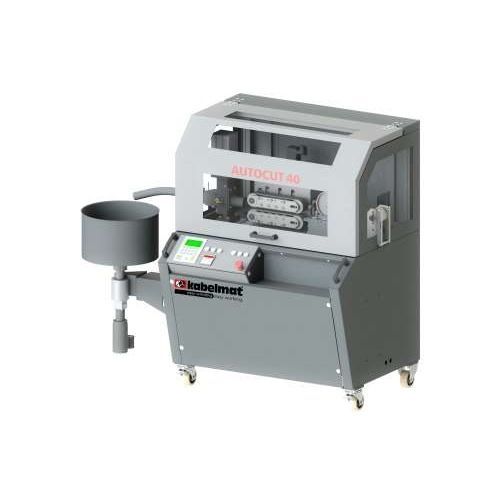

Rotary blade cutting machine AUTOCUT 40

for plasticspanelbelt

The motorised length cutting machine places finished cut winding materials in a pot winder or ejects them directly. Ideal for multiple cuts and short lengths. The powerful feeder makes it possible to pull directly from an unwinding system such as a drum rack This motorised length cutting machine is suitable for measuring and cutting to length materials such as cables, pipes, hoses, steel ropes, plastic profiles etc. The powerful feed allows the draw-off directly from an unwinding system without motor such as drum rack or drum unwinder. In connection with a coil pin the cut-off materials are coiled in rings. Basic machine constructed as self-supported, torsionally resistant weldment with two lockable and two fixed steering rollers or four lockable steering rollers Speed control is continuously ajdustable, allowing a smooth starting The control cabinet is installed in the machine frame The control panel with emergency stop button is ergonomically integrated in the base frame Protection cover with window to be hinged upwards (required for CE) CE conformity declaration according to machinery directive 2006/42/EG Roller cage before the length measuring unit, easily adjustable to match the material Pneummatically or hydraulically operated cutting system Roller feed as a transport- and positioning unit Alternative Belt feed Coil pin motorized size of the coil pins is selectable Printer head holder and guide for inkjet printer with fine adjustment in the X and Y axis Conformity assessment / MID (formerly first calibration)
